ELDV2-10-16MT-0010

ELDV2

GC Injection & Switching Diaphragm Valve

$1,495.00 USD
$1,495.00 USD
Sale Sold out

Downloadables

Product Spec Sheet
Step File

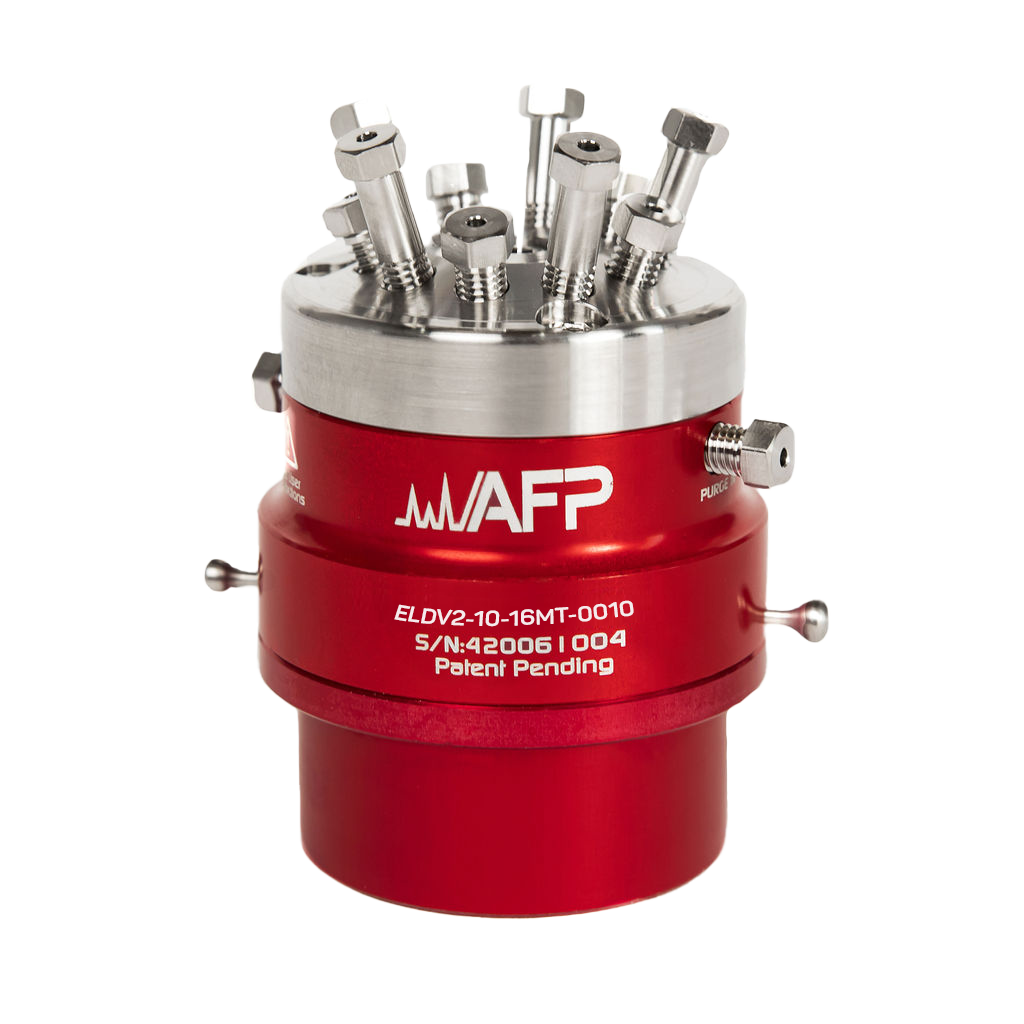

Injection 10-Port GC Purged Diaphragm Valve
ELDV2-10-16MT-0010

Built with precision and accuracy in mind, this 10-port 2-Position Injection & Switching Gas Chromatography Valve is engineered for long-lasting performance. It is constructed with high-grade 316L stainless steel for exceptional durability and corrosion resistance and certified leak tight up to 150 psi at 180°C, making it ideal for VOC applications.

All AFP purged diaphragm valves have purge features built directly into the valve which provides a barrier to prevent any inboard contamination and ensure sample integrity for trace analyses.

Key Features:

  • Ports: 10
  • Temperature: 180°C
  • Pressure: 150 psi
  • Material: SS-316L
  • Port Size: 0.030”
  • Coating: None
  • Purge: Yes

Benefits Include:

  • Increased Productivity: No wear and tear components in proper conditions other than the diaphragm, which we recommend should be replaced approximately every 1 year as preventive maintenance
  • Ideal For: Fast switching and high duty cycle applications
  • Accurate Results: Superior seal integrity prevents inboard leaks
  • Lower Cost of Ownership: Built in purge features, valve does not require an external purge box
  • Higher Quality: Every valve is leak tested before shipping at no additional cost

Valve Type

Valve type : HIGH PERFORMATNCE GRADE, MEDIUM TEMPERATURE
Number of ports : 10
Port size : .030''
Port connection : 1/16” [1.6 mm]
Max working pressure : 150 PSI [1034 kPa]

Actuator Type

Actuator type : PNEUMATIC SINGLE ACTUATION (SPRING RETURN)
Actuation pressure : 50 PSI [345 kPa]
Gas consumption per actuation : 0.07in3 [1.15ml]
Max temperature : 356°F [180°C]
Material : ALUMINUM BODY; SS-316L VALVE HEAD; AFPD-2 DIAPHRAGM TYPE

Dimensions & Weight

Length: 1.97 in [50.038 mm]
Width: 1.97 in [50.038 mm]
Height: 2.35 in [59.69 mm]
Weight: 0.7986 lb [0.8 lb]

View full details
