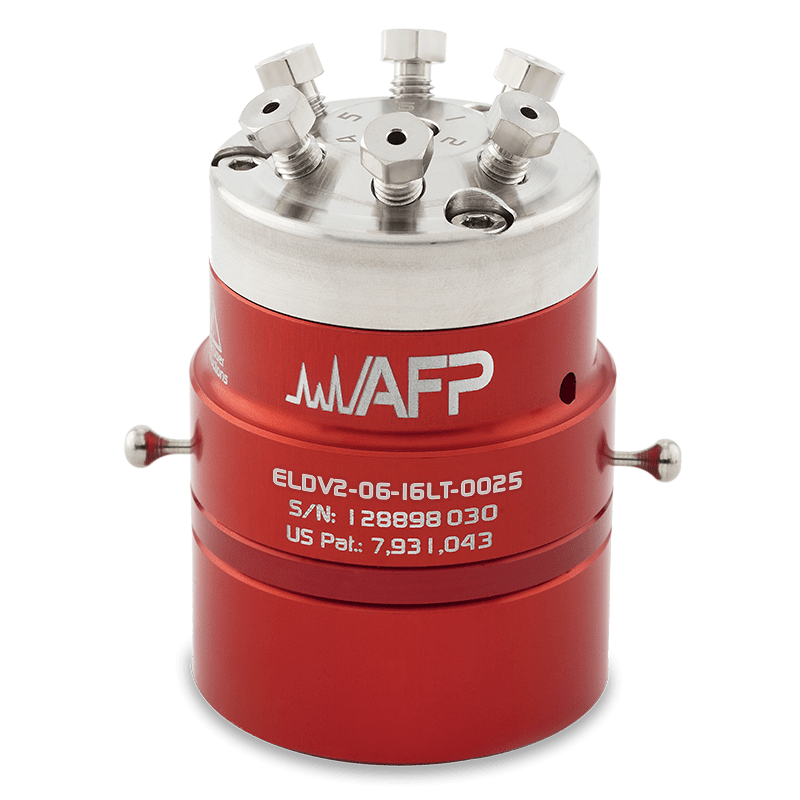

ELDV2-06-16LT-0025

ELDV2

GC Injection & Switching Diaphragm Valve

Regular price $1,063.75 USD
Regular price Sale price $1,063.75 USD
Sale Sold out

Downloadables

Injection 6-Port GC Diaphragm Valve
ELDV2-06-16LT-0025

Built with precision and accuracy in mind, this 6-port 2-Position Injection & Switching Gas Chromatography Valve is engineered for long-lasting performance. It is constructed with high-grade 316L stainless steel for exceptional durability and corrosion resistance and certified leak tight up to 300 psi at 100°C, making it ideal for the Semiconductor industry.

Key Features:

  • Ports: 6
  • Temperature: 100°C
  • Pressure: 300 psi
  • Material: SS-316L
  • Port Size: 0.030”
  • Coating: None
  • Purge: None

Benefits Include:

  • Increased Productivity: No wear and tear components in proper conditions other than the diaphragm, which we recommend should be replaced approximately every 1 year as preventive maintenance
  • Ideal For: Fast switching and high duty cycle applications
  • Accurate Results: Superior seal integrity prevents inboard leaks
  • Higher Quality: Every valve is leak tested before shipping at no additional cost

Valve Type

Valve type : HIGH PERFORMANCE GRADE, LOW TEMPERATURE
Number of ports : 6
Port connection : 1/16” [1.6 mm]
Max working pressure : 300 PSI [2068 kPa]

Actuator Type

Actuator type : PNEUMATIC SINGLE ACTUATION (SPRING RETURN)
Actuation pressure : 65 PSI [450 kPa]
Gas consumption per actuation : 0.05 in3 [0.82 ml]
Max temperature : 212°F [100°C]
Material : ALUMINUM BODY; SS-316L VALVE HEAD; AFPD-1 DIAPHRAGM TYPE

Dimensions & Weight

Length: 2.36 in [59.944 mm]
Width: 2.22 in [56.388 mm]
Height: 2.63 in [66.802 mm]
Weight: 0.649 lb [0.65 lb]

View full details

Contact our experts today

to explore how our industry leading valves can elevate your Gas Chromatography performance and support your critical manufacturing processes.

Contact an Expert
