T-SK-16-040
Tee
Couldn't load pickup availability
Downloadables

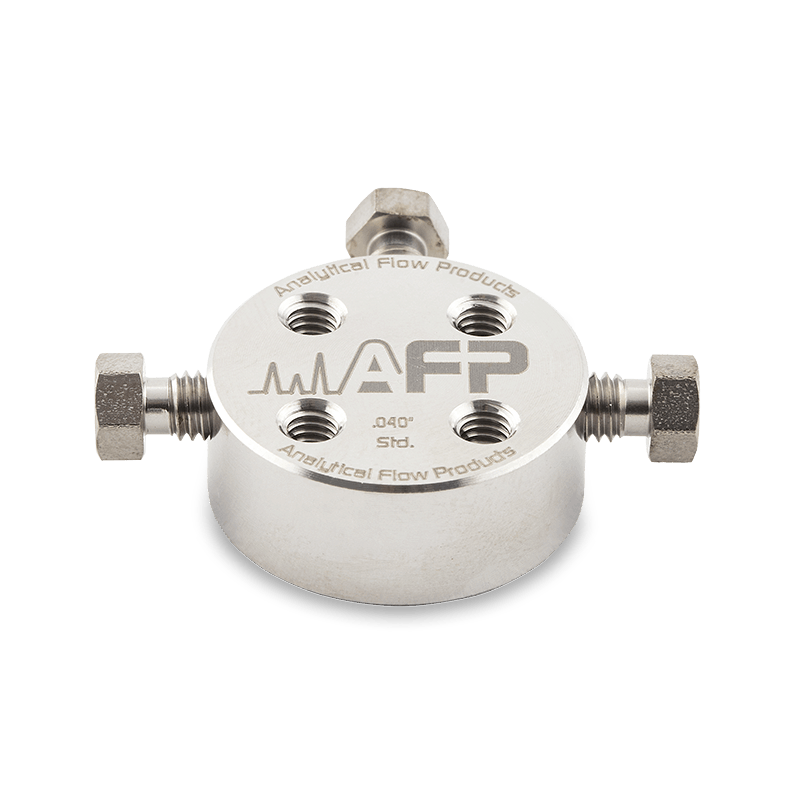

Tee Fitting
T-SK-16-040
The Tee Fitting is created to be a high performing piece of any gas chromatography system to connect three lines. Engineered out of high quality SS-316L, the Tee Fitting has an outside diameter of 1” and doesn’t require clamp rings for mounting. Each Tee Fitting has four mounting holes, allowing them to be fixed two ways - on top with a M3 screw and underneath with a M4 screw.
Key Features:
- Material: SS-316L
- Inlet (Left): 1/16”
- Bore: 0.040”
Benefits Include:
- Multiple mounting options, both on top with a M3 screw or on the bottom with an M4 screw
- No clamp ring required for mounting
- Works with any AFP system and are in spec for the gas chromatography market
Dimensions & Weight
Length: 2.0 in [50.8 mm]
Width: 2.0 in [50.8 mm]
Height: 2.0 in [50.8 mm]
Weight: 0.0704 lb [0.07 lb]
