MDVG

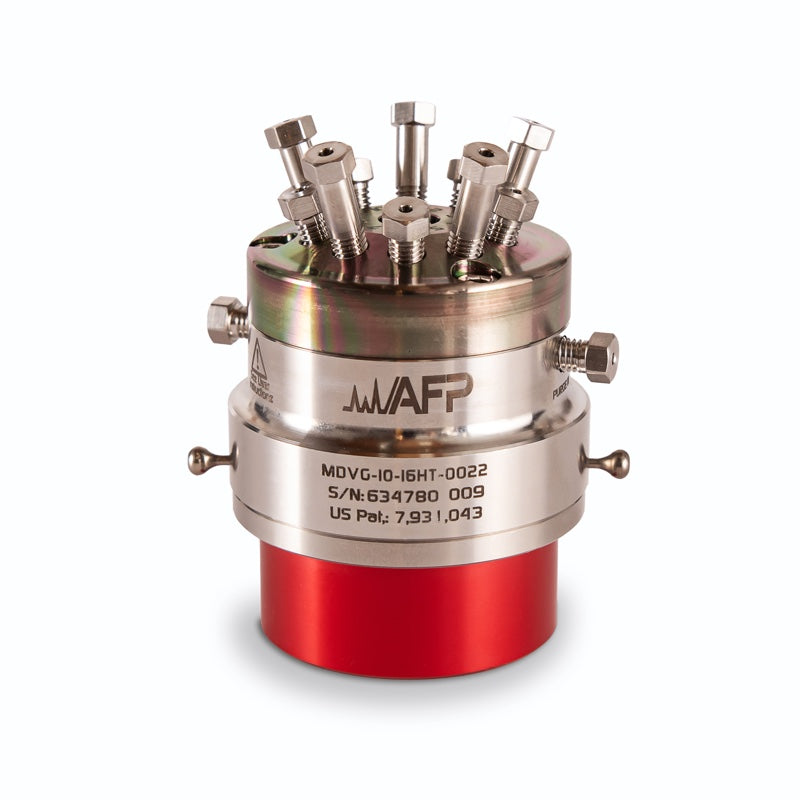

Built with precision and accuracy in mind, this 10-port Injection & Switching Diaphragm Gas Chromatography Valve is engineered for long-lasting performance. It is constructed with high-grade 316L stainless steel for exceptional durability and corrosion resistance and certified leak tight up to 500 psi at 250°C.

All AFP purged diaphragm valves have purge features built directly into the valve which provides a barrier to prevent any inboard contamination and ensure sample integrity for trace analyses.

This High Temperature valve is also coated with Dursan®, a functionalized amorphous silicon oxide layer, which improves durability, reliability, and accuracy in harsh chemical environments.


Key Features:

• Ports: 10
• Temperature: 250°C
• Pressure: 500 psi
• Material: SS-316L
• Port Size: 0.030”
• Coating: Dursan®

• Purge: Yes

Benefits Include:

• Increased Productivity: No wear and tear components in proper conditions other than the diaphragm, which we recommend should be replaced approximately every 1 year as preventive maintenance
• Ideal For: Fast switching and high duty cycle applications
• Accurate Results: Superior seal integrity prevents inboard leaks
• Lower Cost of Ownership: Built in purge features, valve does not require an external purge box
• Higher Quality: Every valve is leak tested before shipping at no additional cost
