ELDV2-10-16LT-0030
ELDV2
GC Injection & Switching Diaphragm Valve
Couldn't load pickup availability
Downloadables

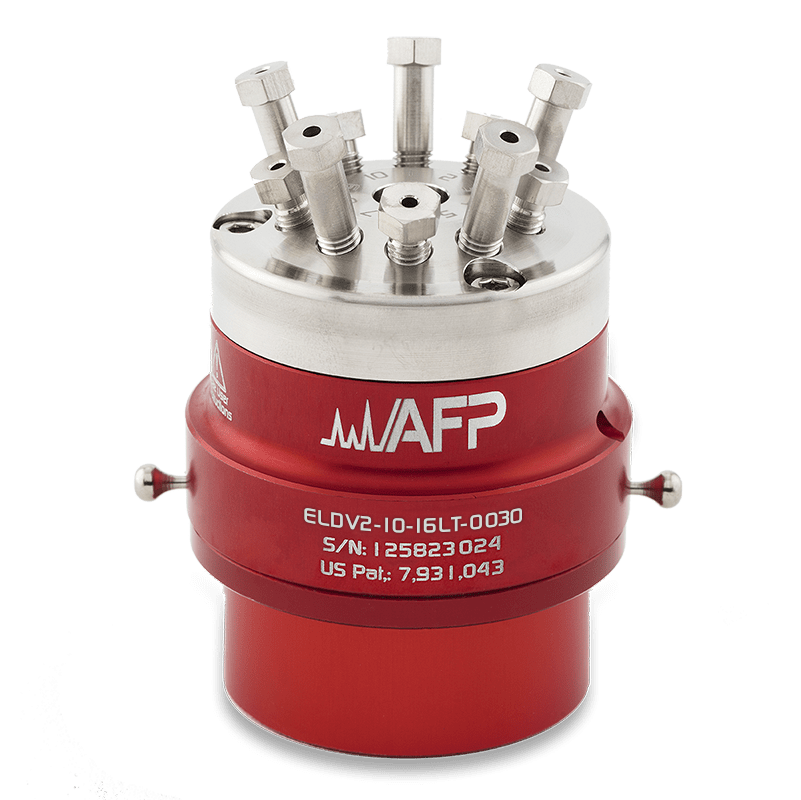

Injection 10-Port GC Diaphragm Valve
ELDV2-10-16LT-0030
Built with precision and accuracy in mind, this 10-port 2-Position Injection & Switching Gas Chromatography Valve is engineered for long-lasting performance. It is constructed with high-grade 316L stainless steel for exceptional durability and corrosion resistance and certified leak tight up to 300 psi at 100°C, making it ideal for the Semiconductor industry.
Key Features:
- Ports: 10
- Temperature: 100°C
- Pressure: 300 psi
- Material: SS-316L
- Port Size: 0.030”
- Coating: None
- Purge: None
Benefits Include:
- Increased Productivity: No wear and tear components in proper conditions other than the diaphragm, which we recommend should be replaced approximately every 1 year as preventive maintenance
- Ideal For: Fast switching and high duty cycle applications
- Accurate Results: Superior seal integrity prevents inboard leaks
- Higher Quality: Every valve is leak tested before shipping at no additional cost
Valve Type
Valve type : STANDARD GRADE, LOW TEMPERATURE
Number of ports : 10
Port connection : 1/16” [1.6 mm]
Max working pressure : 150 PSI [1034 kPa]
Actuator Type
Actuator type : PNEUMATIC SINGLE ACTUATION (SPRING RETURN)
Actuation pressure : 65 PSI [450 kPa]
Gas consumption per actuation : 0.07in3 [1.15ml]
Max temperature : 212°F [100°C]
Material : ALUMINUM BODY; SS-316L VALVE HEAD; AFPD-1 DIAPHRAGM TYPE
Dimensions & Weight
Length: 1.97 in [50.038 mm]
Width: 1.97 in [50.038 mm]
Height: 2.35 in [59.69 mm]
Weight: 0.7986 lb [0.8 lb]

Contact our experts today
to explore how our industry leading valves can elevate your Gas Chromatography performance and support your critical manufacturing processes.
