ELDV2

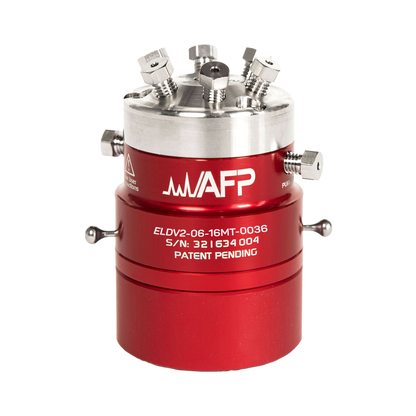

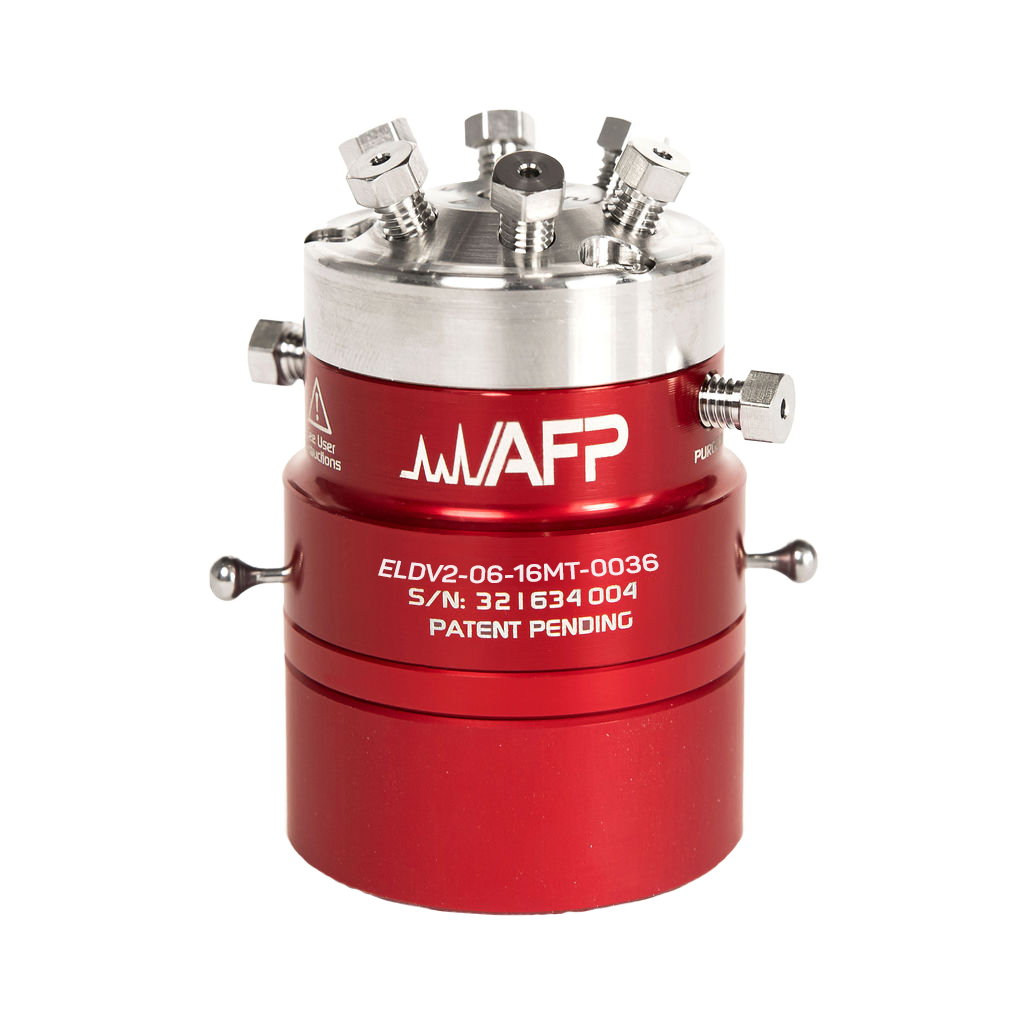

Built with precision and accuracy in mind, this 6-port 2-Position Injection & Switching Gas Chromatography Valve is engineered for long-lasting performance. It is constructed with high-grade 316L stainless steel for exceptional durability and corrosion resistance and certified leak tight up to 300 psi at 180°C, making it ideal for the Semiconductor industry.

All AFP purged diaphragm valves have purge features built directly into the valve which provides a barrier to prevent any inboard contamination and ensure sample integrity for trace analyses.

This valve also features a SilcoNert 2000® coating to prevent surface issues that lead to inaccurate results, constant maintenance, and production delays. This coating also allows for low detection limits critical for quantifying low levels of chemical compounds found in vehicle emissions, refinery gasses, air samples, pesticides, and VOCs.

Key Features:

• Ports: 6
• Temperature: 180°C
• Pressure: 300 psi
• Material: SS-316L
• Port Size: 0.030”
• Coating: SilcoNert 2000®
• Purge: Yes

Benefits Include:

• Increased Productivity: No wear and tear components in proper conditions other than the diaphragm, which we recommend should be replaced approximately every 1 year as preventive maintenance
• Ideal For: Fast switching and high duty cycle applications
• Accurate Results: Superior seal integrity prevents inboard leaks
• Lower Cost of Ownership: Built in purge features, valve does not require an external purge box
• Higher Quality: Every valve is leak tested before shipping at no additional cost
