ELDV2-06-16MT-0011
ELDV2
GC Injection & Switching Diaphragm Valve
Couldn't load pickup availability
Downloadables
Injection 6-Port GC Purged Diaphragm Valve
ELDV2-06-16MT-0011

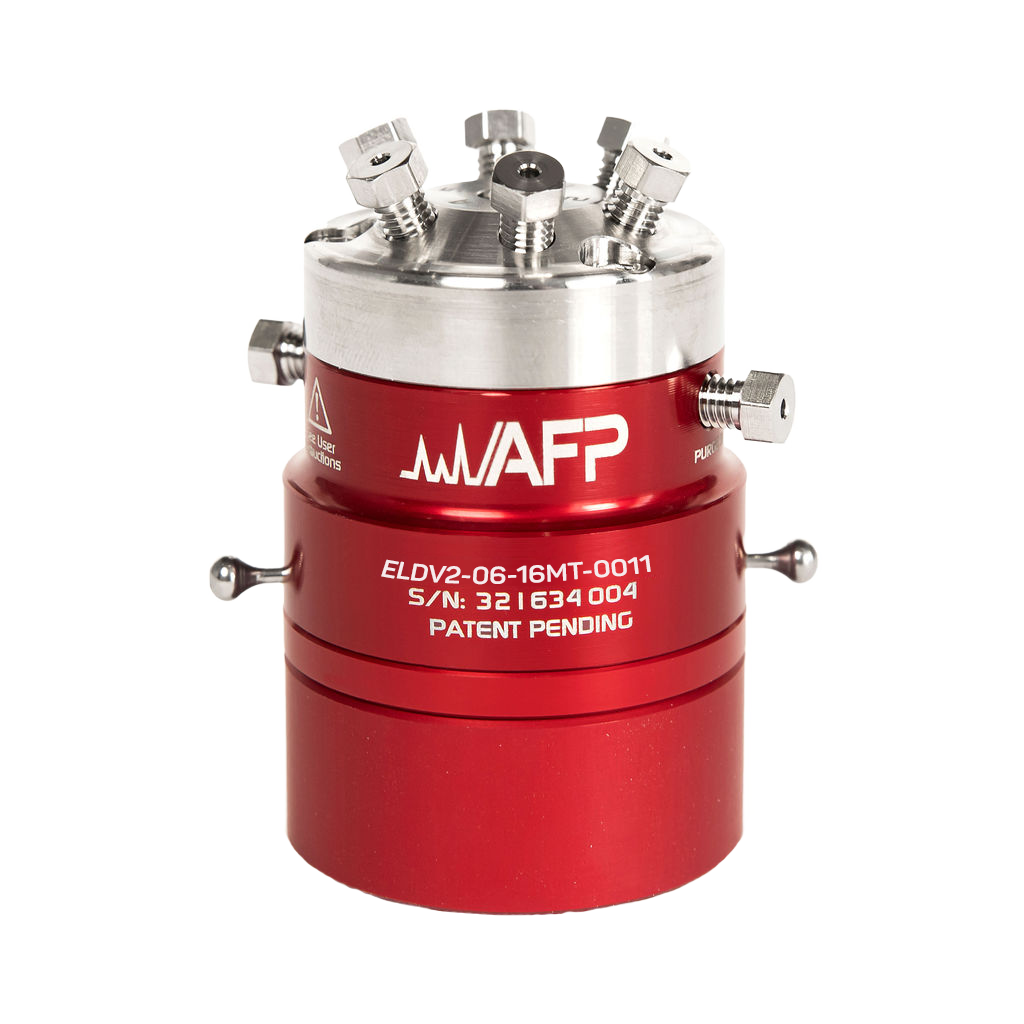

Built with precision and accuracy in mind, this 6-port 2-Position Injection & Switching Gas Chromatography Valve is engineered for long-lasting performance. It is constructed with high-grade 316L stainless steel for exceptional durability and corrosion resistance and certified leak tight up to 150 psi at 180°C, making it ideal for VOC applications.
All AFP purged diaphragm valves have purge features built directly into the valve which provides a barrier to prevent any inboard contamination and ensure sample integrity for trace analyses.
Key Features:
- Ports: 6
- Temperature: 180°C
- Pressure: 150 psi
- Material: SS-316L
- Port Size: 0.010”
- Coating: None
- Purge: Yes
Benefits Include:
- Increased Productivity: No wear and tear components in proper conditions other than the diaphragm, which we recommend should be replaced approximately every 1 year as preventive maintenance
- Ideal For: Fast switching and high duty cycle applications
- Accurate Results: Superior seal integrity prevents inboard leaks
- Lower Cost of Ownership: Built in purge features, valve does not require an external purge box
- Higher Quality: Every valve is leak tested before shipping at no additional cost
Valve Type
Valve type : HIGH PERFORMANCE GRADE, MEDIUM TEMPERATURE
Number of ports : 6
Port size : 0.010” [0.25mm]
Port connection : 1/16” [1.6mm]
Max working pressure : 150 psig [1035 kPa)
Max initial leak rate : 1.5E-9 Atm-cc/s He
Max initial pressure drop : 30 kPa @ 75 sccm, delta max. 15 kPa between any section
Actuator Type
Actuator type : PNEUMATIC SINGLE ACTUATION (SPRING RETURN)
Actuation pressure : 50 psig [345kPa]
Gas consumption per actuation : 0.05in3 [0.82ml]
Max temperature : 356°F [180°C]
Material : ALUMINUM BODY; SS-316L VALVE HEAD; AFPD-2 DIAPHRAGM TYPE
Dimensions & Weight
Length: 2.36 in [59.944 mm]
Width: 2.22 in [56.388 mm]
Height: 2.59 in [65.786 mm]
Weight: 0.649 lb [0.65 lb]
