GC Internal Sampling Diaphragm Valve
Downloadables
Injection 4-Port GC Purged Diaphragm Valve
ELDV2-06-16LT-0040

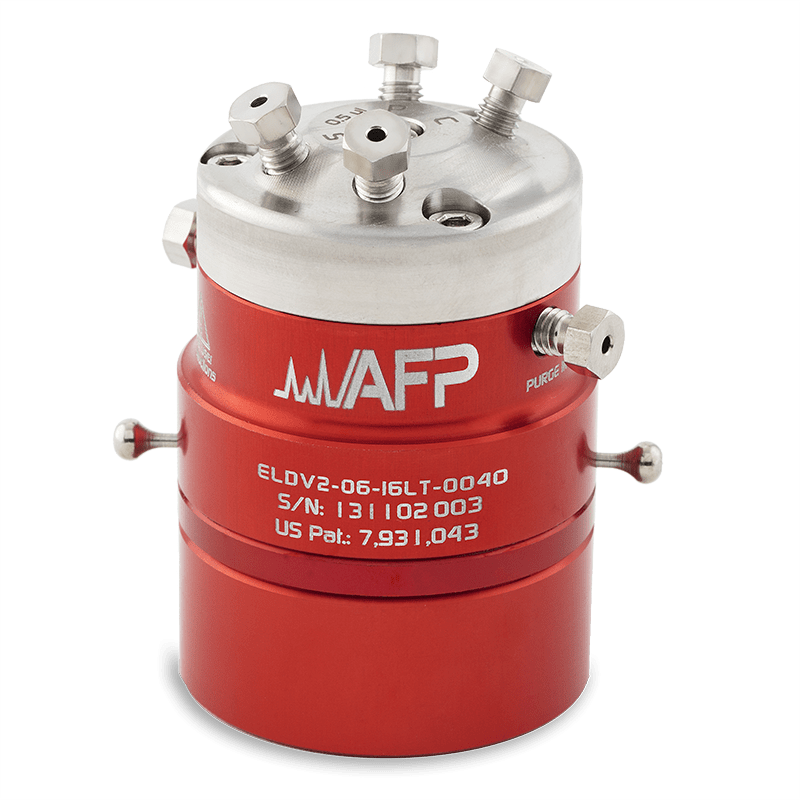

Built with precision and accuracy in mind, this 4-port Internal Liquid Sampling Purged Diaphragm Gas Chromatography Valve is engineered for long-lasting performance. It is constructed with high-grade 316L stainless steel for exceptional durability and corrosion resistance, certified leak tight up to 300 psi at 100°C, and has an internal sampling loop of 0.5µl.
All AFP purged diaphragm valves have purge features built directly into the valve which provides a barrier to prevent any inboard contamination and ensure sample integrity for trace analyses.
Key Features:
- Ports: 4
- Temperature: 100°C
- Pressure: 300 psi
- Material: SS-316L
- Internal Sampling Loop: 0.5µl
- Port Size: 0.030”
- Coating: None
- Purge: Yes
Benefits Include:
- Increased Productivity: No wear and tear components in proper conditions other than the diaphragm, which we recommend should be replaced approximately every 1 year as preventive maintenance
- Ideal For: Fast switching and high duty cycle applications
- Accurate Results: Superior seal integrity prevents inboard leaks
- Lower Cost of Ownership: Built in purge features, valve does not require an external purge box
- Higher Quality: Every valve is leak tested before shipping at no additional cost
Valve Type
Valve type : HIGH PERFORMANCE GRADE, LOW TEMPERATURE
Number of ports : 4
Port connection : 1/16” [1.6 mm]
Max working pressure : 300 PSI [2068 kPa]
Max initial leak rate : 3.7E-10 Atm-cc/s He
Max initial pressure drop : 30 kPa @ 75 sccm N2
Max initial pressure drop through sampling loop : 90 kPa @ 75 sccm N2
Actuator Type
Actuator type : PNEUMATIC SINGLE ACTUATION (SPRING RETURN)
Actuation pressure : 65 PSI [450 kPa]
Gas consumption per actuation : 0.05 in3 [0.82 ml]
Max temperature : 212°F [100°C]
Material : ALUMINUM BODY; SS-316L VALVE HEAD; AFPD-1 DIAPHRAGM TYPE
Dimensions & Weight
Length: 1.68 in [42.672 mm]
Width: 1.68 in [42.672 mm]
Height: 2.39 in [60.706 mm]
Weight: 0.649 lb [0.65 lb]
