CM-100028

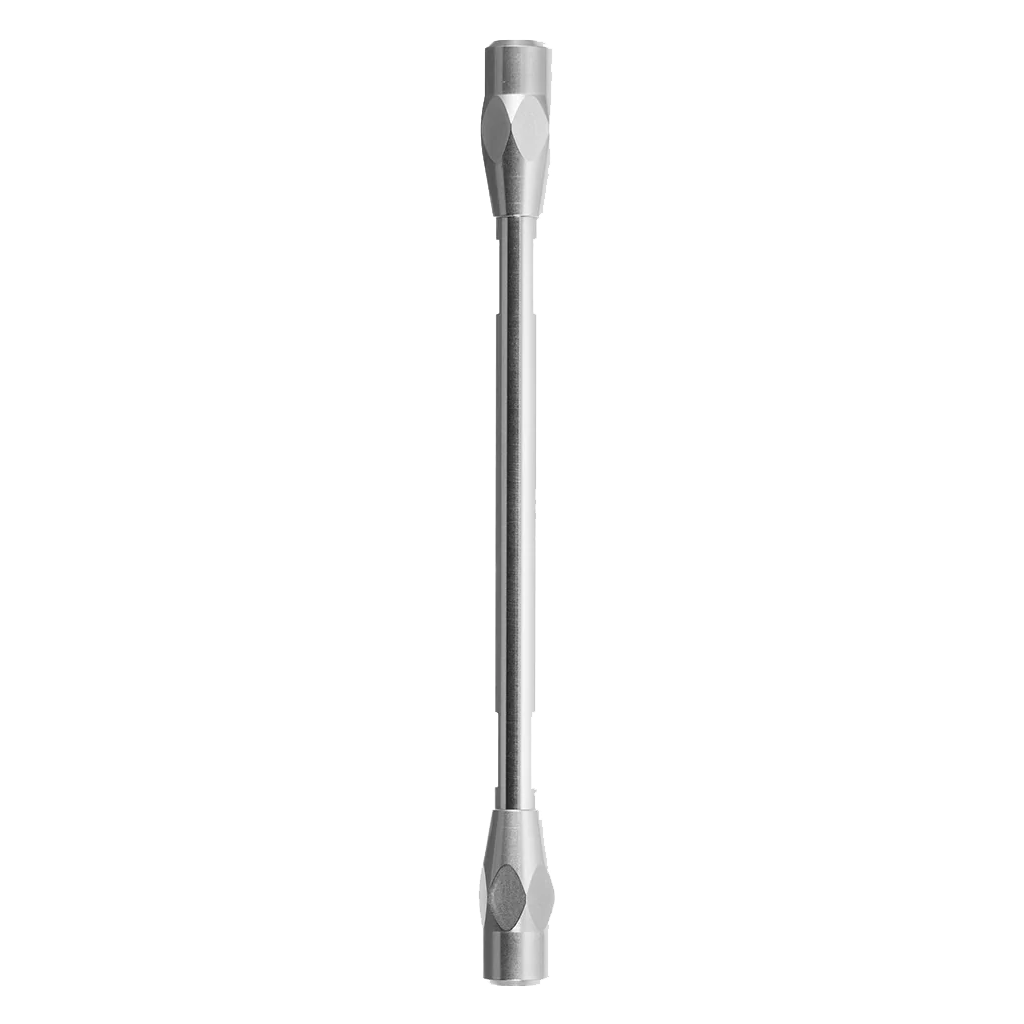

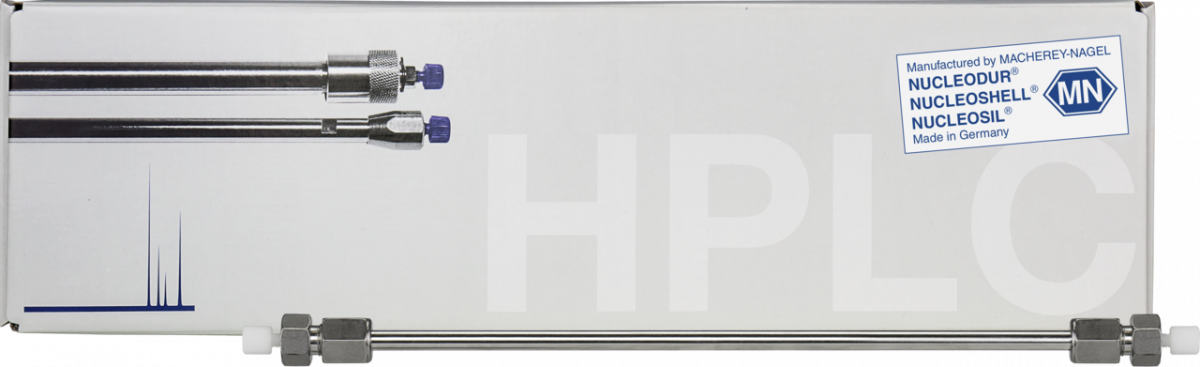

HPLC Column VA 300/7.8 NUCLEOGEL Sugar 810 H

Regular price $2,485.00 USD
Regular price Sale price $2,485.00 USD
Sale Sold out

Polymer-based HPLC phase for separation of sugars. Sulfonated polystyrene / divinylbenzene resins in H ionic form. Due to a different selectivity pattern compared to NUCLEOGEL SUGAR columns, the range of application is considerably enlarged. Separation mechanism includes ion exclusion, ion exchange, size exclusion, ligand exchange as well as NP and RP chromatography.

Downloadables

Specifications

Pore Size: 810 Å
Style: Nucleogel
Mode: Special
Type: Carbohydrate / Sugar
Length: 300 mm
Brand: Macherey-Nagel
Inner Diameter: 7.8 mm
Mfg. No.: 719574

Product Details

  • Method HPLC, analytical
  • Brand NUCLEOGEL
  • Base material Sulfonated spherical PS/DVB resin
  • Phase NUCLEOGEL SUGAR 810 H
  • USP listing L17
  • Surface chemistry Sulfonated spherical polystyrene resin cross-linked with divinylbenzene (PS/DVB), H⁺ form
  • Mode Special application or diverse
  • Type VA HPLC column (analytical)
  • Hardware Stainless steel
  • Column length 300 mm
  • Column inner diameter 7.8 mm
  • Particle type Fully porous particles (FPP)
  • Particle shape Spherical
  • Particle size 8–10 µm
  • Eluent in HPLC column 5 mmol/L H₂SO₄ (sulfuric acid)
  • Endcapped No
  • Carbon content Not available or proprietary
  • Pore size 100 Å
  • Temperature stability (max) 90 °C
  • Pressure stability (max) 70 bar / 1015 psi
  • Column volume 14.3 mL
  • Storage temperature 15–25 °C / 59–77 °F
  • Recommended application(s) Alcohols, Organic acids, Sugars
