CM-100027
Column Protection System Guard Column Holder for EC 4x2 + 4x3 mm Guard Columns
The Column Protection System is an innovative and universal guard holder system for EC 4x2 mm and 4x3 mm guard columns. Suitable for all analytical HPLC columns with 1/16" fittings. Ideal protection for your analytical HPLC column for significantly extended lifetime. Pressure stability up to 1300 bar (18850 psi).
Couldn't load pickup availability
Downloadables
Specifications
Type: Guard Column Holder
Brand: Macherey-Nagel
Mfg. No.: 718966
Product Details
- Guard column dimension 4 mm length, 2 or 3 mm ID
- Accessory for HPLC hardware EC, universal
- Storage temperature 15–25 °C / 59–77 °F

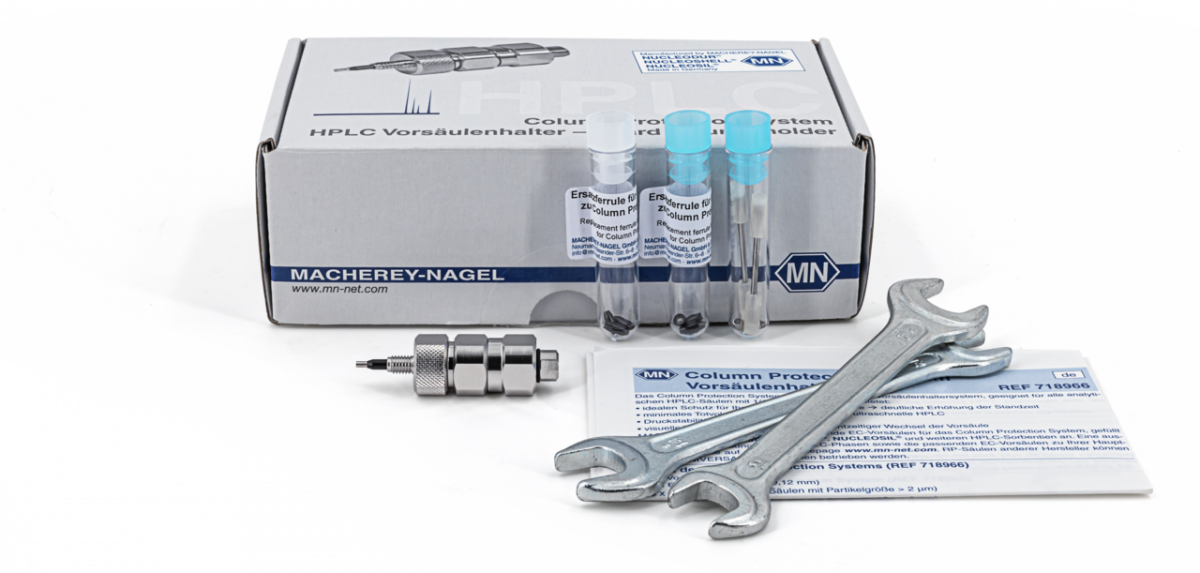

- Scope of delivery 1x Guard column holder, 3x Ferrules (for HPLC columns with particle size > 2 µm), 3x Ferrules (for HPLC columns with particle size < 2 µm), 2x double open ended wrenches (12 and 14 mm), 2x replacement capillaries (0.12 mm ID), 1x instruction leaflet
- Gross weight (incl. packaging) 223.1 g / 0.49 lbs
- Packaging dimensions 165 x 95 x 55 mm / 6.50 x 3.74 x 2.17 Inch
- Hazardous material No
- Recommended application(s) HPLC
