CM-100026

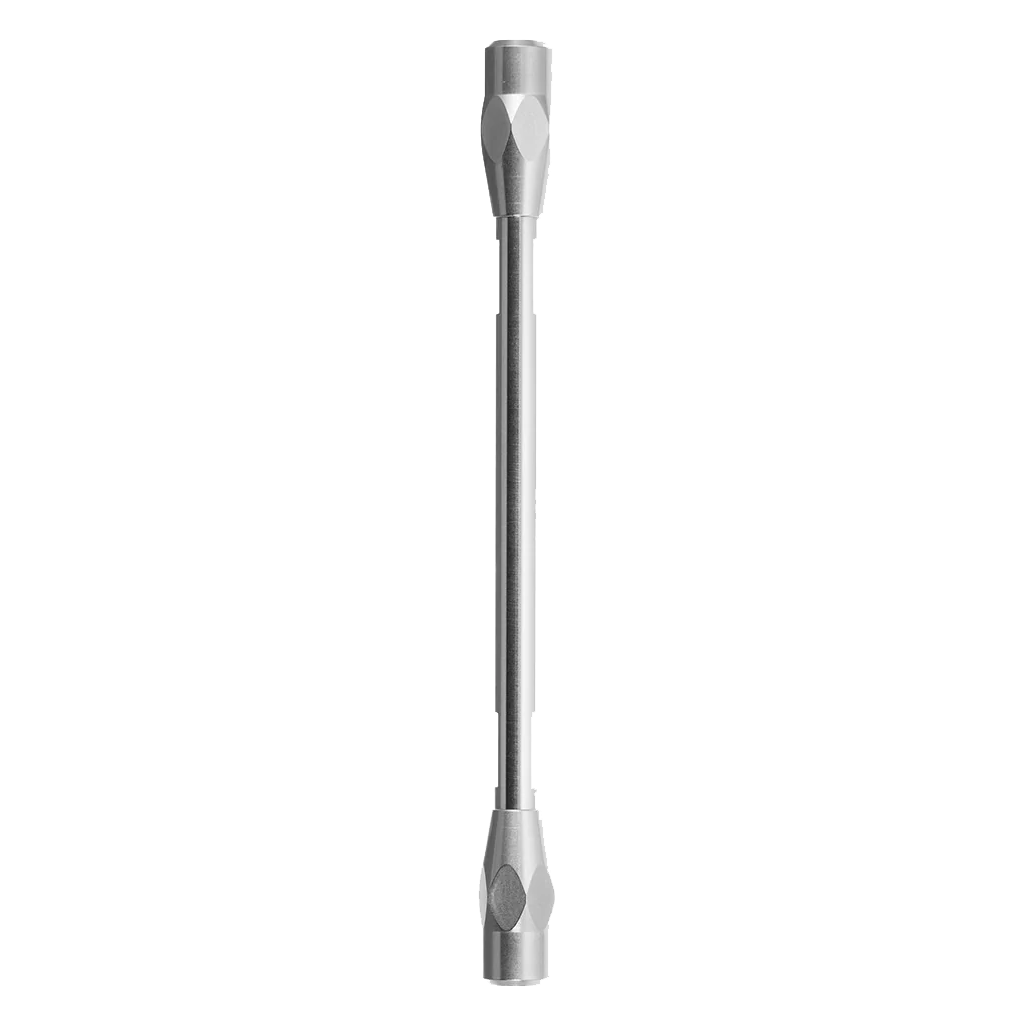

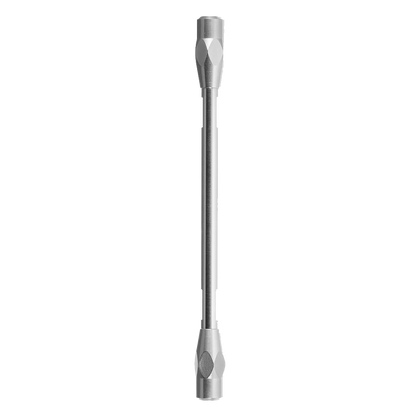

HPLC Column EC 100/2 NUCLEOSHELL HILIC, 2.7 µm
Hydrophilic stationary phases provide an additional tool for the separation of polar analytes in HPLC. HILIC is NP chromatography of polar and ionic compounds under RP conditions. The zwitterionic HILIC phase is based on core-shell technology silica gel particles.
Couldn't load pickup availability
Downloadables
Specifications
Pore Size: 110 Å
Style: Nucleodur
Particle Size: 2.7 µm
Type: HILIC
Carbon Load: 7.0
Length: 100 mm
Brand: Macherey-Nagel
Endcapped: No
Inner Diameter: 2 mm
Mfg. No.: 763334.20
Product Details
- Method HPLC, analytical
- Brand NUCLEOSHELL
- Base material NUCLEOSHELL - core-shell silica
- Phase NUCLEOSHELL HILIC
- USP listing Not available or proprietary
- Surface chemistry Ammonium – sulfonic acid (zwitterionic) modification
- Mode Hydrophilic Interaction Chromatography (HILIC)
- Type EC HPLC column (analytical)
- Hardware Stainless steel
- Column length 100 mm
- Column inner diameter 2 mm
- Particle type Core-shell, superficially porous particles (SPP)
- Particle shape Spherical
- Particle size 2.7 µm
- Eluent in HPLC column Acetonitrile – water
- Endcapped No
- Carbon content 1.3 %
- pH stability 2.0–8.5
- Pore size 90 Å
- Specific surface according to BET 130 m²/g
- Temperature stability (max) 60 °C
- Pressure stability (max) 600 bar / 8700 psi
- Column volume 0.3 mL
- Storage temperature 15–25 °C / 59–77 °F
- Recommended application(s) Amino acids, Highly polar analytes, HILIC applications HPLC, Hydrophilic compounds, Nucleosides, Oligonucleotides, Organic polar acids and bases, Peptides, Polar natural compounds, Water-soluble vitamins
