CM-100022


HPLC Guard Column EC 4/2 NUCLEODUR 100-5 C18 ec, Pkg. 3

Regular price $191.00 USD
Regular price Sale price $191.00 USD
Sale Sold out

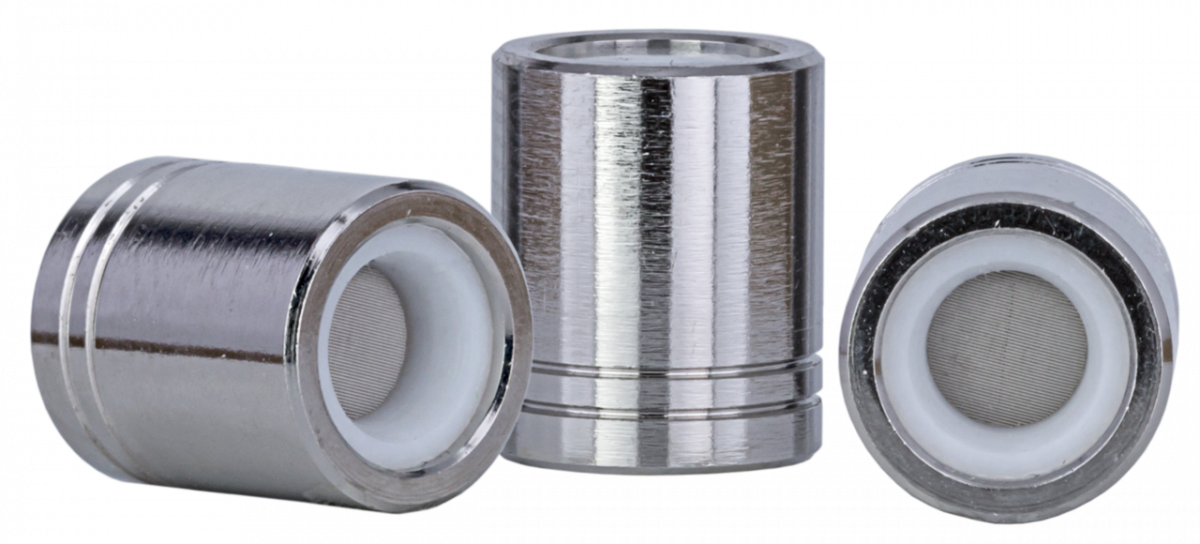

For protection of your main HPLC column from contamination, it is recommended to use guard columns. These short columns are placed into a guard column holder. The guard column holder in combination with a guard column inside is installed between the injector and the HPLC column. This installation prevents chemical impurities to reach the main column. Because a contamination could form an irreversible bond with the column packing material (stationary phase) and this can result in shorter column life. If you want to prolong the lifetime of your main column, then these short columns can help you.

Downloadables

Specifications

Pore Size: 100 Å
Style: Nucleodur
Particle Size: 5 µm
Mode: Reversed Phase (RP)
Type: C18 (RP18, ODS, Octadecyl)
Length: 4 mm
Brand: Macherey-Nagel
Inner Diameter: 2 mm
Mfg. No.: 761932.20

Product Details

  • Method HPLC, analytical
  • Brand NUCLEODUR
  • Base material NUCLEODUR - high purity silica
  • Phase NUCLEODUR 100-5 C18 ec
  • USP listing L1
  • Surface chemistry Medium density monomeric octadecyl (C18, ODS) modification
  • Mode Reversed phase (RP)
  • Type EC HPLC guard column (analytical)
  • Hardware Stainless steel
  • Column length 4 mm
  • Column inner diameter 2 mm
  • Particle type Fully porous particles (FPP)
  • Particle shape Spherical
  • Particle size 5 µm
  • Eluent in HPLC column Acetonitrile – water
  • Endcapped Yes
  • Carbon content 17.5 %
  • pH stability 1.0–9.0
  • Pore size 110 Å
  • Specific surface according to BET 340 m²/g
  • Temperature stability (max) 60 °C
  • Pressure stability (max) 600 bar / 8700 psi
  • Storage temperature 15–25 °C / 59–77 °F
  • Recommended application(s) Guard column, ideal protection for your main column, HPLC

View full details
