CM-100017

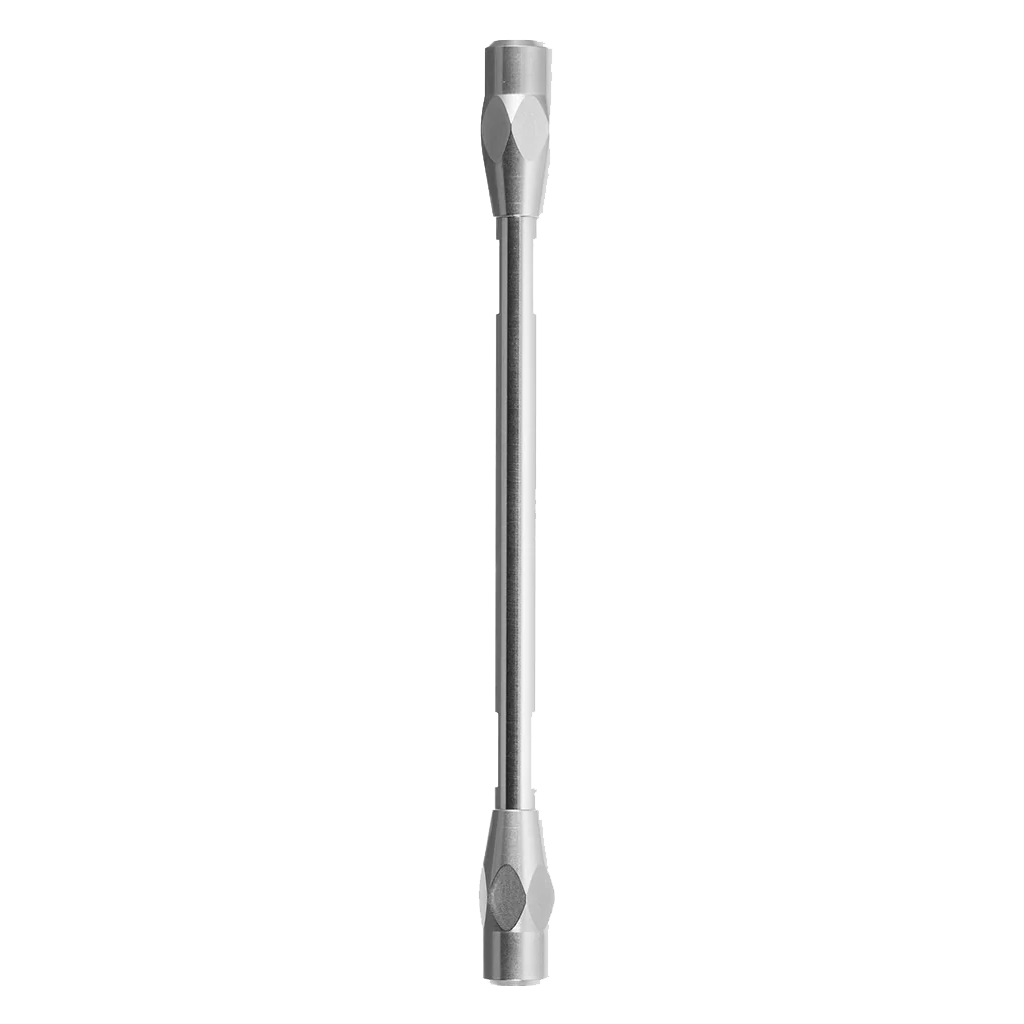

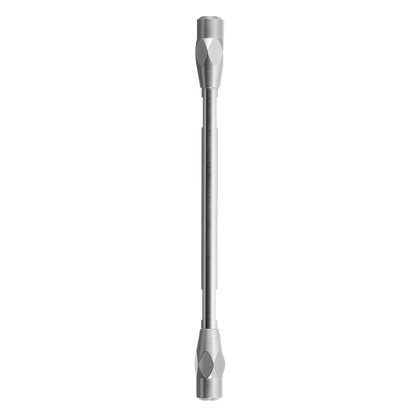

HPLC Column EC 150/2 NUCLEODUR HILIC, 1.8 µm

$985.00 USD
$985.00 USD
Sale Sold out

Hydrophilic stationary phases provide an additional tool for the separation of polar analytes in HPLC. HILIC is NP chromatography of polar and ionic compounds under RP conditions. The zwitterionic HILIC phase is based on high purity NUCLEODUR silica gel.

Downloadables

Reference Guide

Specifications

Pore Size: 110 Å
Style: Nucleodur
Particle Size: 1.8 µm
Type: HILIC
Carbon Load: 7.0
Length: 150 mm
Brand: Macherey-Nagel
Endcapped: No
Inner Diameter: 2 mm
Mfg. No.: 760528.20

Product Details

  • Method HPLC/UHPLC, analytical
  • Brand NUCLEODUR
  • Base material NUCLEODUR - high purity silica
  • Phase NUCLEODUR HILIC
  • USP listing Not available or proprietary
  • Surface chemistry Ammonium – sulfonic acid (zwitterionic) modification
  • Mode Hydrophilic Interaction Chromatography (HILIC)
  • Type EC UHPLC column (analytical)
  • Hardware Stainless steel
  • Column length 150 mm
  • Column inner diameter 2 mm
  • Particle type Fully porous particles (FPP)
  • Particle shape Spherical
  • Particle size 1.8 µm
  • Eluent in HPLC column Acetonitrile – water
  • Endcapped No
  • Carbon content 7.0 %
  • pH stability 2.0–8.5
  • Pore size 110 Å
  • Specific surface according to BET 340 m²/g
  • Temperature stability (max) 60 °C
  • Pressure stability (max) 900 bar / 13050 psi
  • Column volume 0.45 mL
  • Storage temperature 15–25 °C / 59–77 °F
  • Recommended application(s) Amino acids, Highly polar analytes, HILIC applications UHPLC, Hydrophilic compounds, Nucleosides, Oligonucleotides, Organic polar acids and bases, Peptides, Polar natural compounds, Water-soluble vitamins
