CM-100016

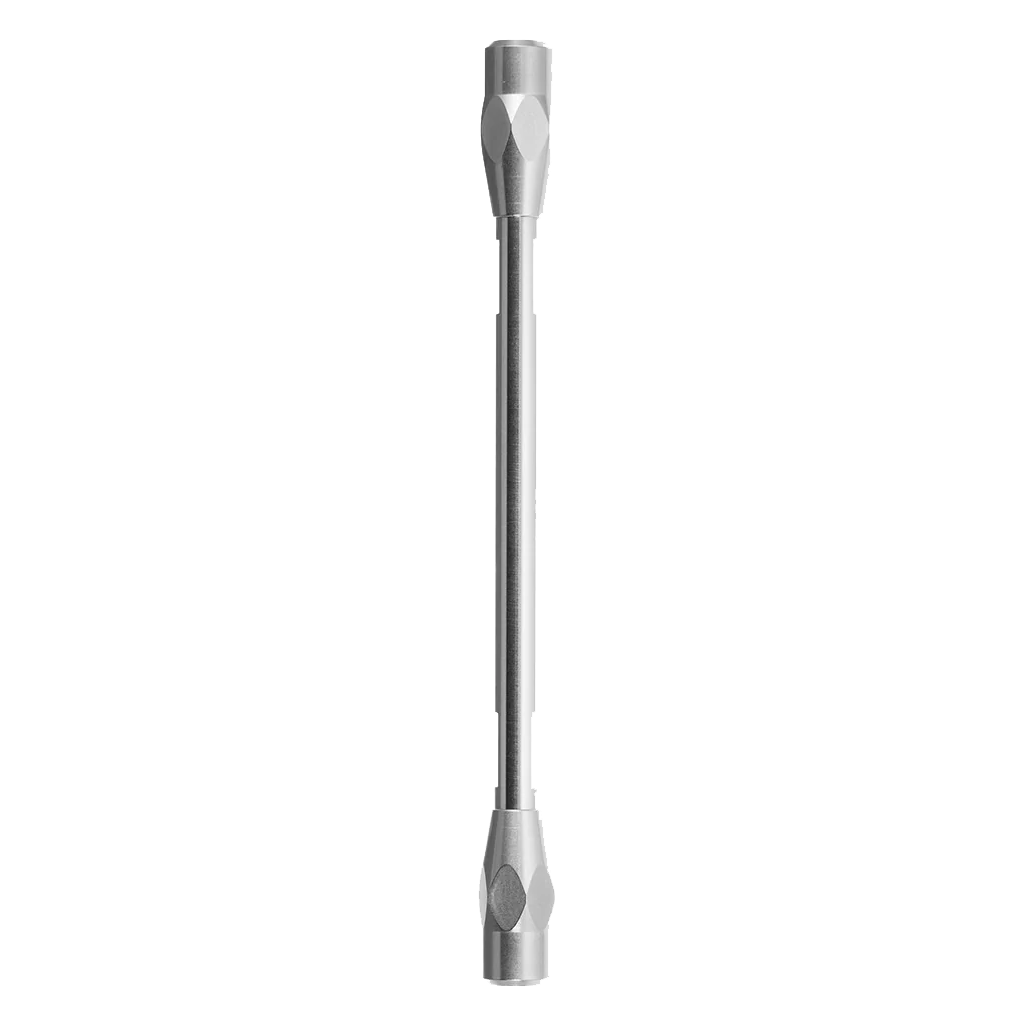

HPLC Column EC 150/3 NUCLEODUR PolarTHPLC Column, EC, 3 µm

Regular price $995.00 USD
Regular price Sale price $995.00 USD
Sale Sold out

Based on high-purity NUCLEODUR silica gel, a polar group was embedded in a hydrophobic C18 modification. As a result, this HPLC phase shows steric and an increased polar selectivity. This HPLC phase shows a good performance under high aqueous conditions. It is a hydrophobic phase with pronounced hydrophilic properties. Separation mechanism based on hydrophobic (van der Waals) and polar interactions. Suitable for LC/MS due to low bleeding characteristics.

Downloadables

Specifications

Pore Size: 110 Å
Style: Nucleodur
Particle Size: 3 µm
Mode: Reversed Phase (RP)
Type: C18 (RP18, ODS, Octadecyl)
Carbon Load: 15.5
Length: 150 mm
Brand: Macherey-Nagel
Endcapped: No
Inner Diameter: 3 mm
Mfg. No.: 760478.30

Product Details

  • Method HPLC, analytical
  • Brand NUCLEODUR
  • Base material NUCLEODUR - high purity silica
  • Phase NUCLEODUR PolarTec
  • USP listing L1, L60
  • Surface chemistry Octadecyl phase (C18, ODS) modification, with embedded polar group (PEG)
  • Mode Reversed phase (RP)
  • Type EC HPLC column (analytical)
  • Hardware Stainless steel
  • Column length 150 mm
  • Column inner diameter 3 mm
  • Particle type Fully porous particles (FPP)
  • Particle shape Spherical
  • Particle size 3 µm
  • Eluent in HPLC column Acetonitrile – water
  • Endcapped Yes
  • Carbon content 17.0 %
  • pH stability 1.0–9.0
  • Pore size 110 Å
  • Specific surface according to BET 340 m²/g
  • Temperature stability (max) 60 °C
  • Pressure stability (max) 600 bar / 8700 psi
  • Column volume 1.05 mL
  • Storage temperature 15–25 °C / 59–77 °F
  • Recommended application(s) Amino acids, Basic pharmaceuticals, Especially for polar compounds, Nitrogen containing compounds, Organic acids, Pesticides, Phenols, Reversed phase, RP applications UHPLC, Suitable for 100 % aqueous eluents, Suitable for LC-MS, Water-soluble vitamins
