CM-100015

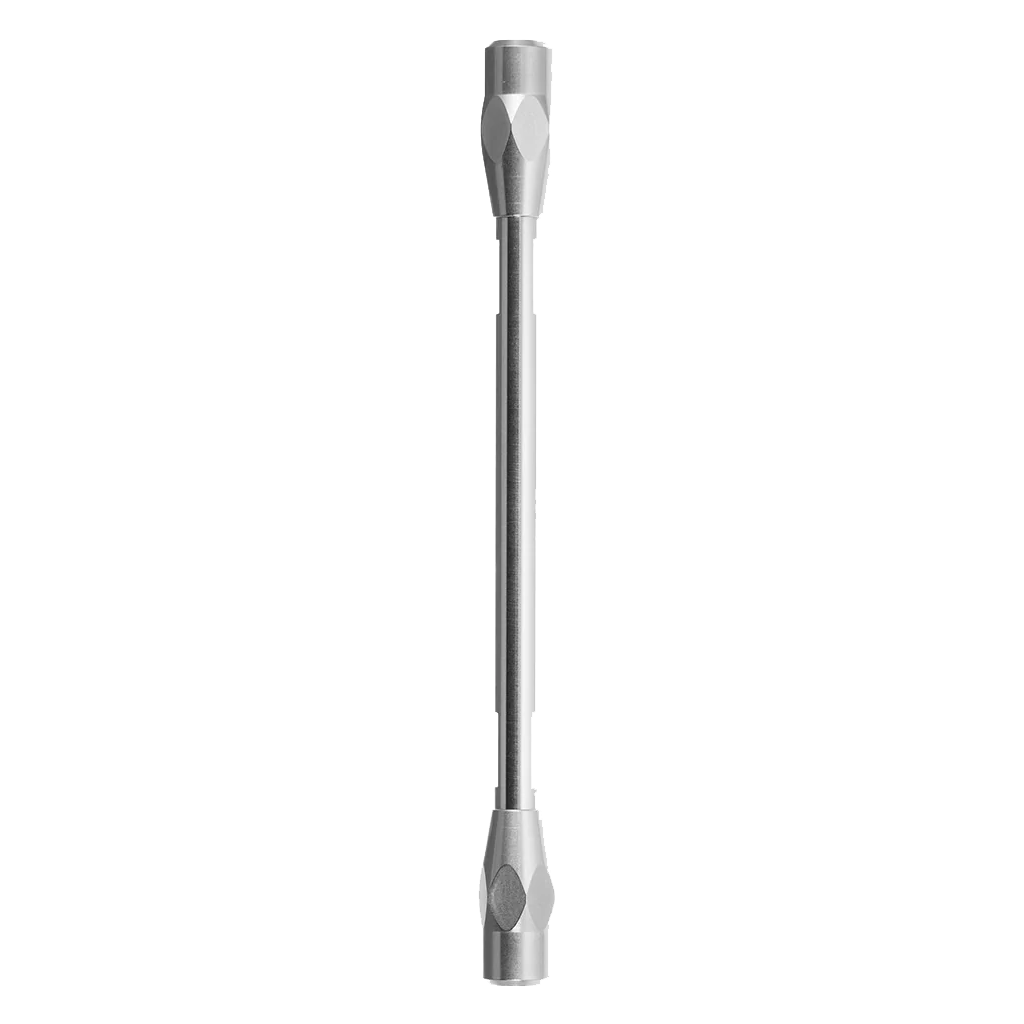

HPLC Column EC 100/3 NUCLEODUR PolarTHPLC Column, EC, 3 µm
Based on high-purity NUCLEODUR silica gel, a polar group was embedded in a hydrophobic C18 modification. As a result, this HPLC phase shows steric and an increased polar selectivity. This HPLC phase shows a good performance under high aqueous conditions. It is a hydrophobic phase with pronounced hydrophilic properties. Separation mechanism based on hydrophobic (van der Waals) and polar interactions. Suitable for LC/MS due to low bleeding characteristics.
Couldn't load pickup availability
Downloadables
Specifications
Pore Size: 110 Å
Style: Nucleodur
Particle Size: 3 µm
Mode: Reversed Phase (RP)
Type: C18 (RP18, ODS, Octadecyl)
Carbon Load: 15.5
Length: 100 mm
Brand: Macherey-Nagel
Endcapped: No
Inner Diameter: 3 mm
Mfg. No.: 760476.30
Product Details
- Method HPLC, analytical
- Brand NUCLEODUR
- Base material NUCLEODUR - high purity silica
- Phase NUCLEODUR PolarTec
- USP listing L1, L60
- Surface chemistry Octadecyl phase (C18, ODS) modification, with embedded polar group (PEG)
- Mode Reversed phase (RP)
- Type EC HPLC column (analytical)
- Hardware Stainless steel
- Column length 100 mm
- Column inner diameter 3 mm
- Particle type Fully porous particles (FPP)
- Particle shape Spherical
- Particle size 3 µm
- Eluent in HPLC column Acetonitrile – water
- Endcapped Yes
- Carbon content 17.0 %
- pH stability 1.0–9.0
- Pore size 110 Å
- Specific surface according to BET 340 m²/g
- Temperature stability (max) 60 °C
- Pressure stability (max) 600 bar / 8700 psi
- Column volume 0.7 mL
- Storage temperature 15–25 °C / 59–77 °F
- Recommended application(s) Amino acids, Basic pharmaceuticals, Especially for polar compounds, Nitrogen containing compounds, Organic acids, Pesticides, Phenols, Reversed phase, RP applications UHPLC, Suitable for 100 % aqueous eluents, Suitable for LC-MS, Water-soluble vitamins
