CM-100014

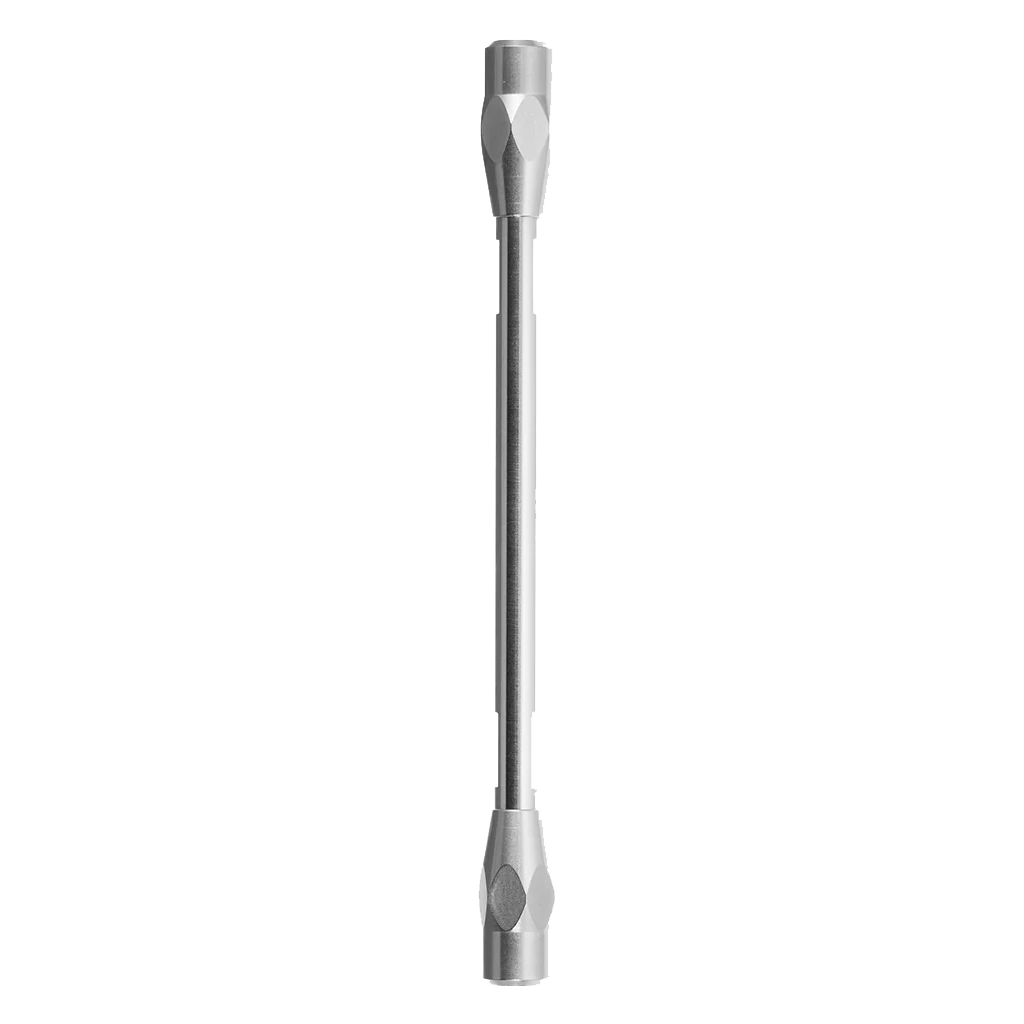

HPLC Column EC 250/4.6 NUCLEODUR C18 Isis, 3 µm
The NUCLEODUR C18 Isis is a octadecylsilyl phase with special polymeric, crosslinked surface modification and allows exceptional steric selectivity. This "magical" selectivity can separate (o,p,m-) substituted aromatics.
Couldn't load pickup availability
Downloadables
Specifications
Pore Size: 110 Å
Style: Nucleodur
Particle Size: 3 µm
Mode: Reversed Phase (RP)
Type: C18 (RP18, ODS, Octadecyl)
Carbon Load: 20.0
Length: 250 mm
Brand: Macherey-Nagel
Endcapped: Yes
Inner Diameter: 4.6 mm
Mfg. No.: 760404.46
Product Details
- Method HPLC, analytical
- Brand NUCLEODUR
- Base material NUCLEODUR - high purity silica
- Phase NUCLEODUR C18 Isis
- USP listing L1
- Surface chemistry High steric selectivity, Nonpolar crosslinked polymeric octadecyl (C18, ODS) modification
- Mode Reversed phase (RP)
- Type EC HPLC column (analytical)
- Hardware Stainless steel
- Column length 250 mm
- Column inner diameter 4.6 mm
- Particle type Fully porous particles (FPP)
- Particle shape Spherical
- Particle size 3 µm
- Eluent in HPLC column Acetonitrile – water
- Endcapped Yes
- Carbon content 20.0 %
- pH stability 1.0–10.0
- Pore size 110 Å
- Specific surface according to BET 340 m²/g
- Temperature stability (max) 60 °C
- Pressure stability (max) 600 bar / 8700 psi
- Column volume 4.15 mL
- Storage temperature 15–25 °C / 59–77 °F
- Recommended application(s) (o,p,m-) Substituted aromatics, Exceptional steric selectivity, Fat-soluble vitamins, Reversed phase, RP applications HPLC, Steroids, Suitable for LC-MS
