CM-100011

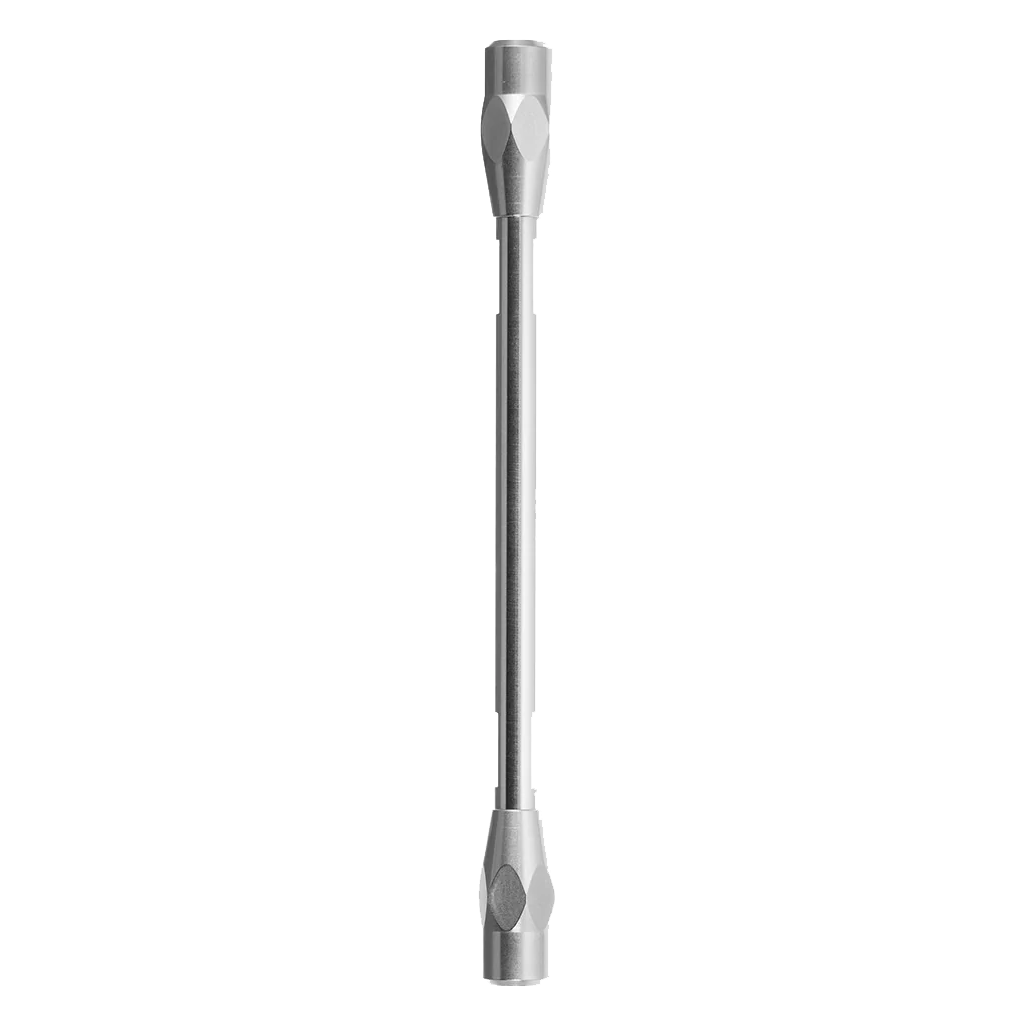

HPLC Column EC 150/4.6 NUCLEODUR C18 Pyramid, 5 µm
The stationary phase of NUCLEODUR C18 Pyramid is based on high purity silica gel and is modified by an octadecyl modification with polar endcapping. Polar endcapping makes this C18 phase suitable for aqueous eluents and is also so called "aqua column".
Couldn't load pickup availability
Downloadables
Specifications
Pore Size: 110 Å
Style: Nucleodur
Particle Size: 5 µm
Mode: Reversed Phase (RP)
Type: C18 (RP18, ODS, Octadecyl)
Carbon Load: 14.0
Length: 150 mm
Brand: Macherey-Nagel
Endcapped: Yes
Inner Diameter: 4.6 mm
Mfg. No.: 760203.46
Product Details
- Method HPLC, analytical
- Brand NUCLEODUR
- Base material NUCLEODUR - high purity silica
- Phase NUCLEODUR C18 Pyramid
- USP listing L1
- Surface chemistry Octadecyl (C18, ODS) modification, Polar endcapping
- Mode Reversed phase (RP)
- Type EC HPLC column (analytical)
- Hardware Stainless steel
- Column length 150 mm
- Column inner diameter 4.6 mm
- Particle type Fully porous particles (FPP)
- Particle shape Spherical
- Particle size 5 µm
- Eluent in HPLC column Acetonitrile – water
- Endcapped Yes
- Carbon content 14.0 %
- pH stability 1.0–9.0
- Pore size 110 Å
- Specific surface according to BET 340 m²/g
- Temperature stability (max) 60 °C
- Pressure stability (max) 600 bar / 8700 psi
- Column volume 2.5 mL
- Storage temperature 15–25 °C / 59–77 °F
- Recommended application(s) Analgesics, Complexing agents, Nucleic acid bases, Organic acids, Penicillin antibiotics, Reversed phase, RP applications HPLC, Suitable for 100 % aqueous eluents, Suitable for LC-MS, Water-soluble vitamins
