CM-100007

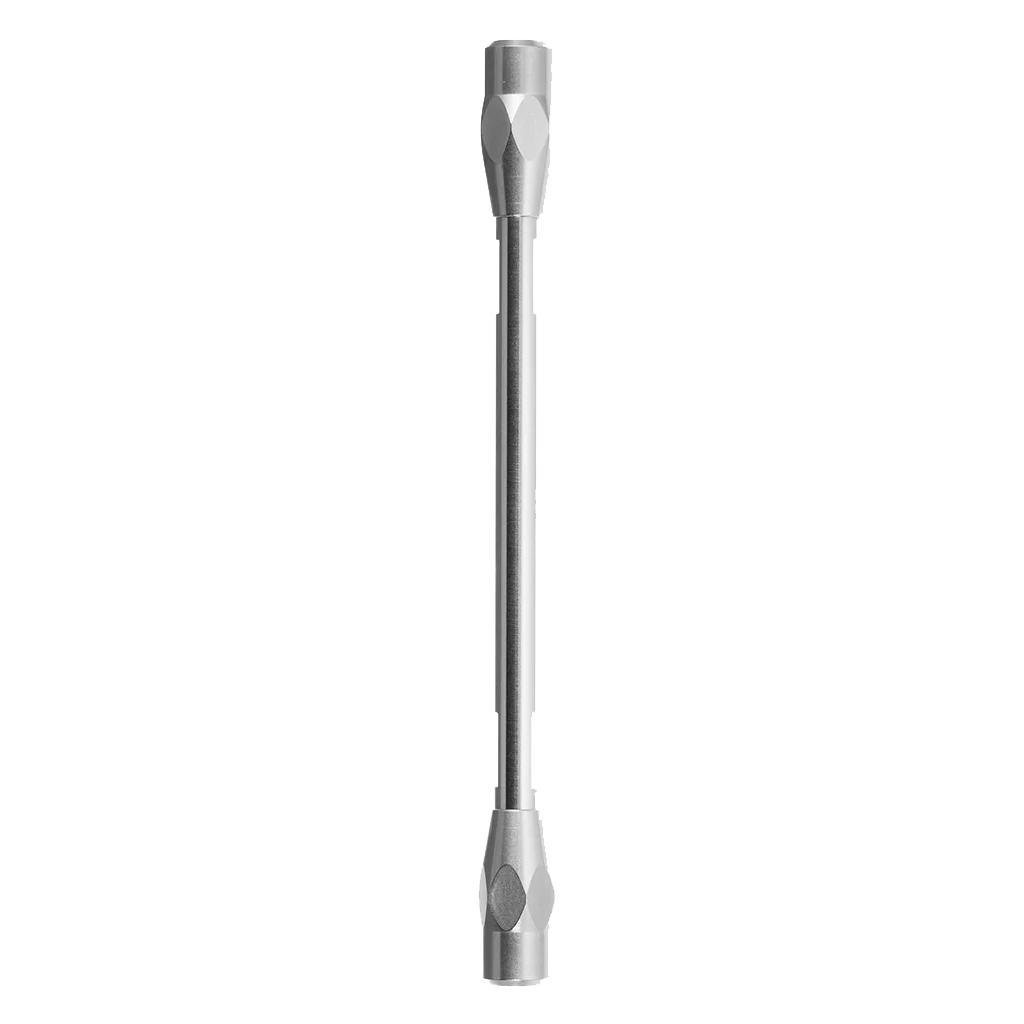

HPLC Column EC 250/4.6 NUCLEODUR C18 Gravity, 5 µm
This high density C18 phase based on high purity NUCLEODUR silica gel with its endcapping suppresses any unwanted polar interactions between the silica surface and the sample, which makes “Gravity” particularly suitable for the separation of basic and other ionizable analytes. Due to the enhanced pH stability, LC/MS suitability and superior base deactivation (BDS) it is a perfect choice for method development and valuable for RP applications.
Couldn't load pickup availability
Downloadables
Specifications
Pore Size: 110 Å
Style: Nucleodur
Particle Size: 5 µm
Mode: Reversed Phase (RP)
Type: C18 (RP18, ODS, Octadecyl)
Carbon Load: 18.0
Length: 250 mm
Brand: Macherey-Nagel
Endcapped: Yes
Inner Diameter: 4.6 mm
Mfg. No.: 760101.46
Product Details
- Method HPLC, analytical
- Brand NUCLEODUR
- Base material NUCLEODUR - high purity silica
- Phase NUCLEODUR C18 Gravity
- USP listing L1
- Surface chemistry Base deactivated (BDS), High density octadecyl (C18, ODS) modification
- Mode Reversed phase (RP)
- Type EC HPLC column (analytical)
- Hardware Stainless steel
- Column length 250 mm
- Column inner diameter 4.6 mm
- Particle type Fully porous particles (FPP)
- Particle shape Spherical
- Particle size 5 µm
- Eluent in HPLC column Acetonitrile – water
- Endcapped Yes
- Carbon content 18.0 %
- pH stability 1.0–11.0
- Pore size 110 Å
- Specific surface according to BET 340 m²/g
- Temperature stability (max) 60 °C
- Pressure stability (max) 600 bar / 8700 psi
- Column volume 4.15 mL
- Storage temperature 15–25 °C / 59–77 °F
- Recommended application(s) Analgesics, Antidepressants, Antiinflammatory drugs, Applications at pH extremes (1-11), Herbicide, Ideal for method development, Immunosuppressants, Pharmaceuticals, Phytopharmaceuticals, Reversed phase, RP applications HPLC
