CH-100042

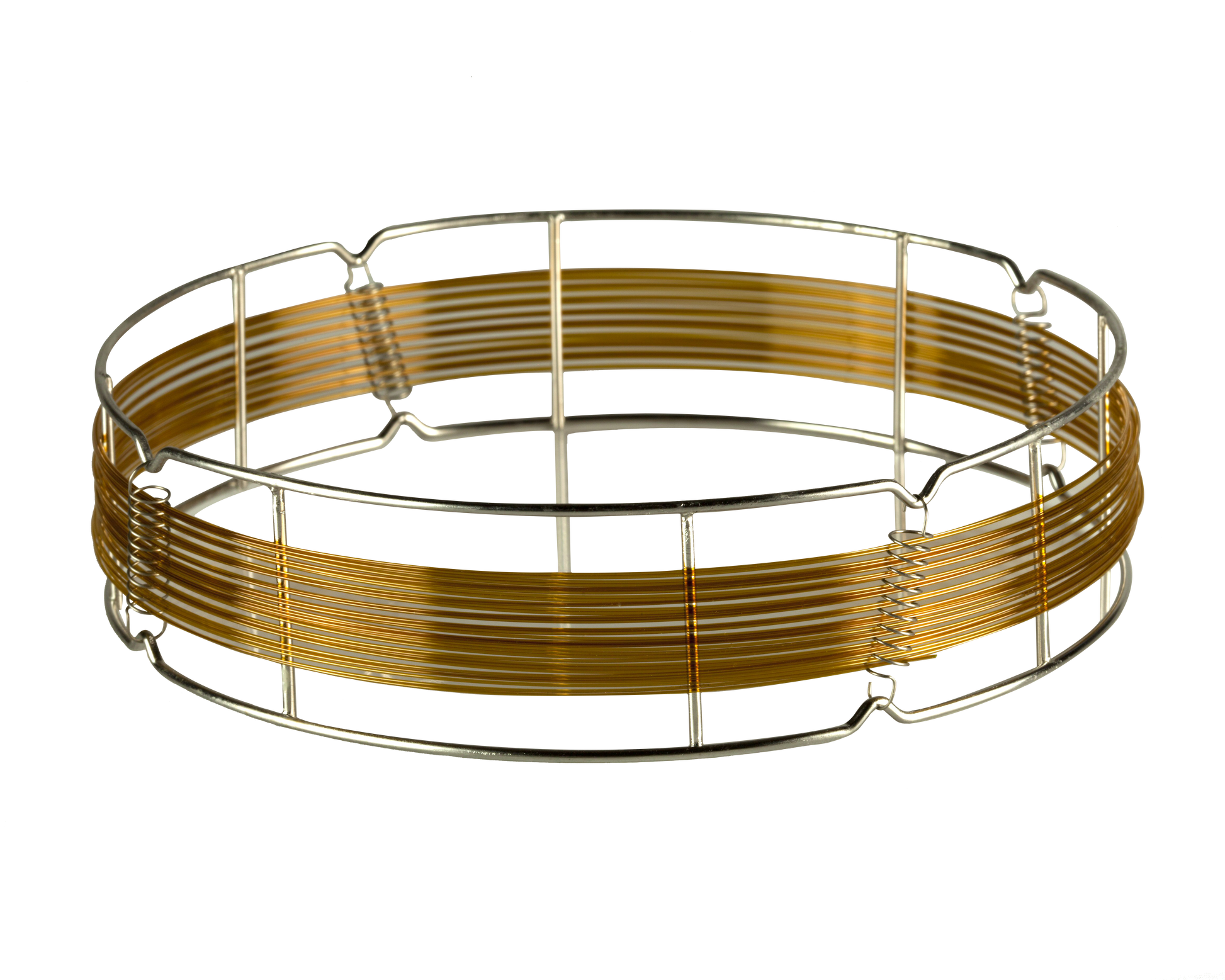

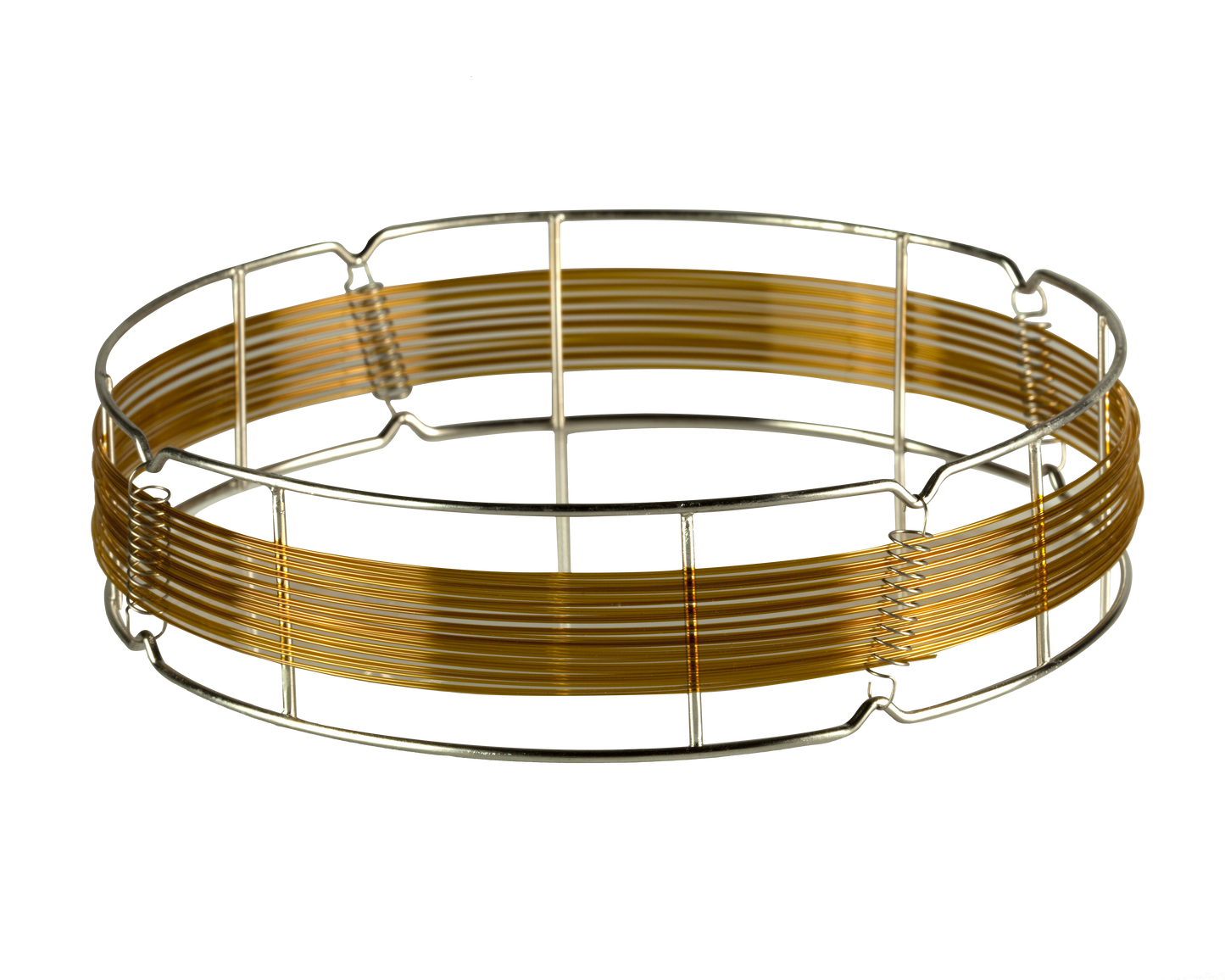

GC Column 007-FFAP, 60 m x 0.32 mm ID, 0.5 µm Film

Regular price $1,771.00 USD
Regular price Sale price $1,771.00 USD
Sale Sold out

The non-polar 007-1 dimethylpolysiloxane phase, which separates compounds according to boiling point, is probably the most frequently used phase type in GC. Bonding and crosslinking this general purpose GC phase increases the resistance to degradation by rinsing, large solvent injections and the deposition of non-volatiles. The 007-1 phase offers excellent efficiency and thermal stability. In addition, this non-polar phase is less susceptible to oxidation and hydrolysis than phases incorporating more polar functional groups.

  • Bonded and crosslinked
  • Moderately polar
  • Comparable to FFAP, OV-351, SP-1000
  • Similar phases: DB-FFAP, AT-1000, HP-FFAP, Stabilwax DA, BP-21, CPWax-58CB, Nukol, CPWax-58CB
  • USP Phase Specification: G25

Downloadables

Specifications

Style: PHAT™
Type: Capillary
Specification: Polyethylene Glycol (PEG)
Film Thickness: 0.5 μm
Length: 60 m
Brand: Quadrex
Inner Diameter: 0.32 mm
Mfg. No.: 007-FFAP-60W-0.5F
Similar to Ohio Valley OV-351, Agilent SP-1000

General Area of Use

Alcohols, aldehydes, ketones, acid

007-FFAP is a nitroterephthalic acid modified polyethylene glycol (PEG) polymer. This bonded acidic phase is ideal for the analysis of aqueous solutions of free fatty acids as well as fatty acid methyl esters. As with the 007-CW (and BTR-CW) polyethylene glycol phases, 007-FFAP is not recommended for the analysis of silylating reagents.
