CH-100036

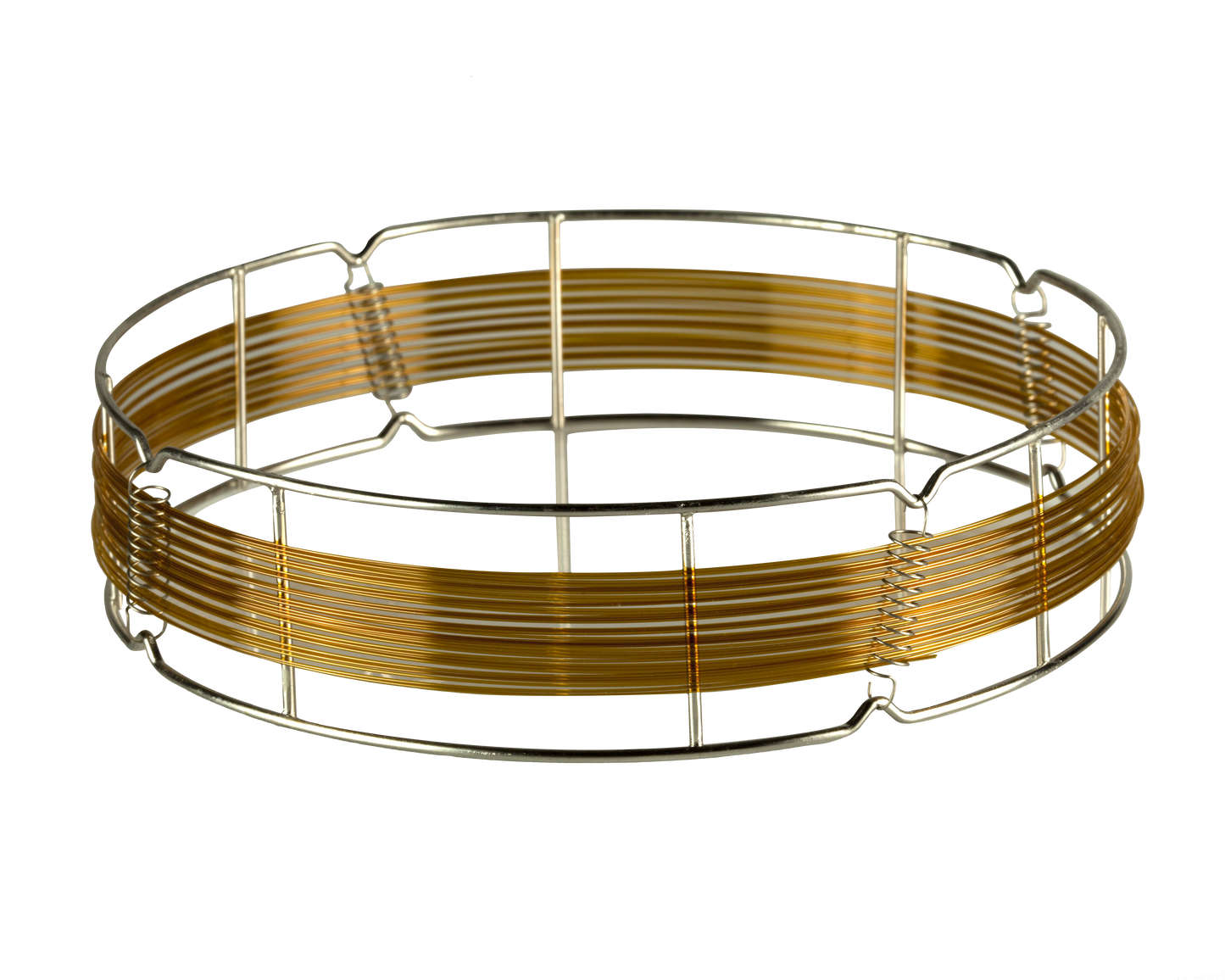

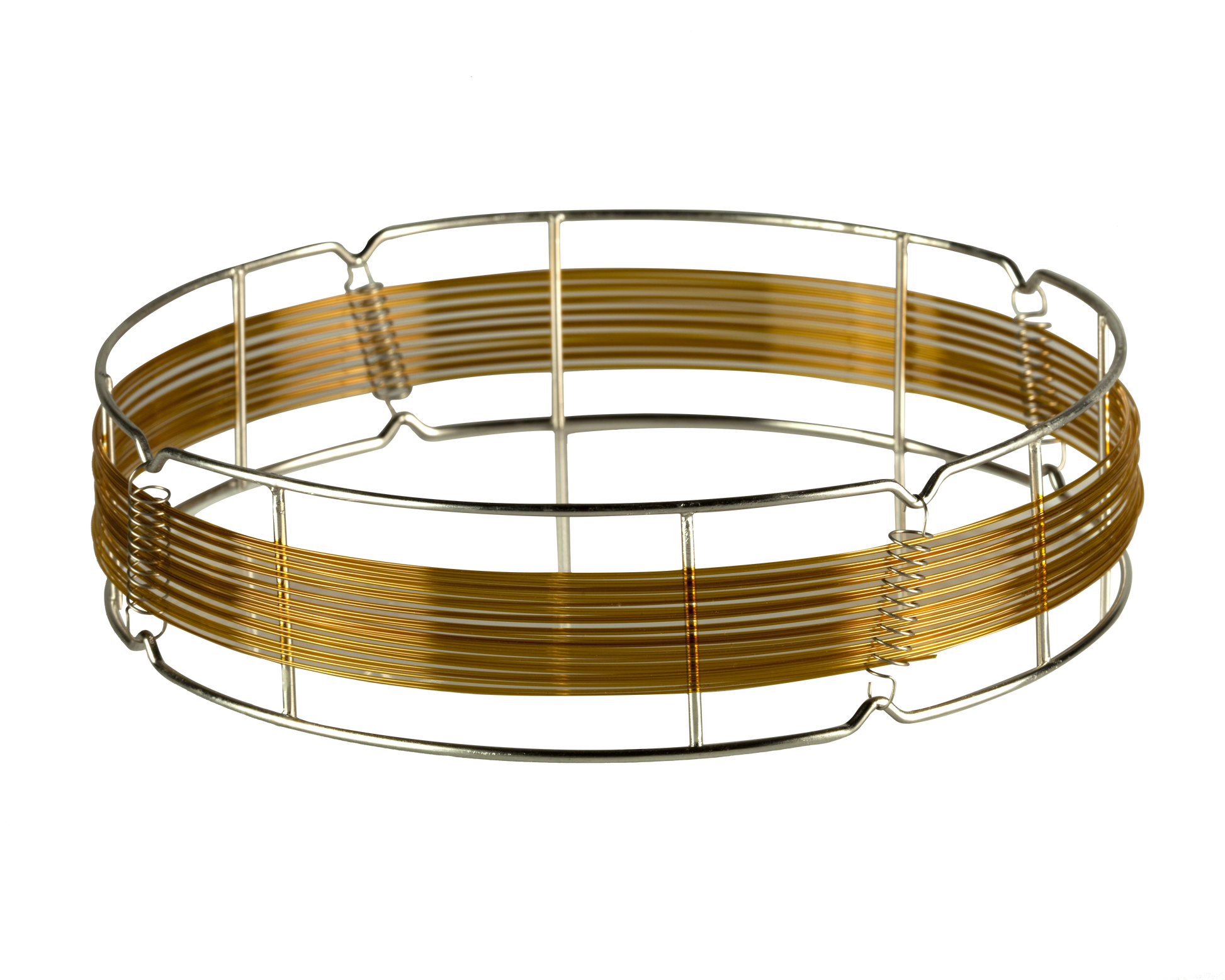

GC Column 007-CW, 30 m x 0.53 mm ID, 1 µm Film

Regular price $1,165.00 USD
Regular price Sale price $1,165.00 USD
Sale Sold out

The non-polar 007-1 dimethylpolysiloxane phase, which separates compounds according to boiling point, is probably the most frequently used phase type in GC. Bonding and crosslinking this general purpose GC phase increases the resistance to degradation by rinsing, large solvent injections and the deposition of non-volatiles. The 007-1 phase offers excellent efficiency and thermal stability. In addition, this non-polar phase is less susceptible to oxidation and hydrolysis than phases incorporating more polar functional groups.

  • Bonded and crosslinked
  • Moderately polar
  • Comparable to Carbowax 20M™*
  • Similar phases: DB-Wax, Stabilwax, AT-Wax, HP-20M, HP-Innowax, Supelcowax-10, BP-20, CPWax-52CB
  • USP Phase Specification: G16

*Carbowax is a trademark of Union Carbide Corporation

Downloadables

Specifications

Style: PHAT™
Type: Capillary
Specification: Polyethylene Glycol (PEG)
Film Thickness: 1 μm
Length: 30 m
Brand: Quadrex
Inner Diameter: 0.53 mm
Mfg. No.: 007-CW-30V-1.0F

General Area of Use

Alcohols, free acids, essential oils, solvents, aromatics, BTEX, flavors and fragrances

007-CW and OXYGEN-RESISTANT BTR-CW, POLYETHYLENE GLYCOL (PEG) POLYMER

007-CW and BTR-CW are the Quadrex designations for an ethylene glycol/siloxane copolymer. This polymer can be used to separate compounds at temperatures not normally associated with polyethylene glycol (PEG, Carbowax™) phases. Both the lower and upper temperature limits of traditional Carbowax type columns are extended with this phase.

In addition, Quadrex offers a modified version of the 007-CW phase, designated BTR-CW, which incorporates an anti-oxidant moiety to better withstand oxygen degradation. The BTR-CW phase offers increased thermal stability and longer column lifetimes. See additional information below.

The hydrogen bonding interactions of the 007-CW and BTR-CW phases makes them well suited for the analysis of polar compounds such as solvents, flavors, perfumes, and essential oils. These phases are not recommended for the analysis of mixtures containing silylating reagents.

BTR-CW, OXYGEN-RESISTANT PHASE:

Columns coated with bondable PEG and, even more so with traditional Carbowax 20M, deteriorate in the presence of oxygen. It has been necessary, therefore, to maintain an oxygen-free chromatographic system. To lower the costs of maintaining such a system and to improve the chromatographic properties of the PEG-type columns, we offer the oxygen-resistant BTR-CW phase type. BTR-CW is a polyethylene glycol (PEG) phase, similar to our 007-CW phase, but which incorporates an anti-oxidant moiety to better withstand oxygen exposure and the resultant degradation. The BTR-CW also offers increased thermal stability and longer column lifetimes.
