Column End

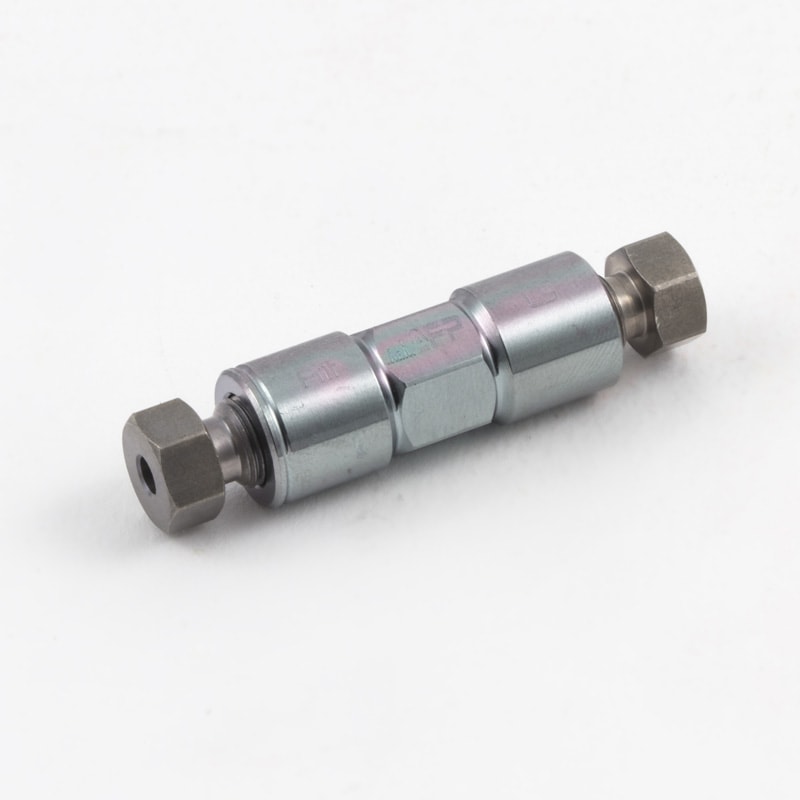

The Column End Fitting with Lipseal Feature is created to be a high performing piece of any gas chromatography system that joins two 1/8” tubes. AFP’s Lipseal feature creates a face seal at the union body and the tip of the tube (when using pre-cut tubing), resulting in a real zero dead-volume fitting. Engineered out of high quality SS-316L, the Column End Fitting reduces the torque required to make proper connections as well as ease the plumbing inside a gc analyzer. The use of this Column End Fitting removes the need for welding at the end of typical packed columns in gas chromatographs and is designed with built-in filtration to prevent any damage or clogging in the valves.

The addition of SilcoNert 2000® coating improves reliability, durability, and creates an inert flow path for increased analytical results.

Key Features:

• Material: SS-316L
• Inlet (Left): 1/8”

• Outlet (Right): 1/8”

• Bore: 0.085”
• Frit: 10µm
• Coating: SilcoNert 2000®

Benefits Include:

• 1/8” Column End Fitting is created with a fine pitch thread
• Works with 1/8” tubing size
• Lipseal feature for a real zero dead-volume fitting
• Works with any AFP system and are in spec for the gas chromatography market
