CE-SK-08-LS16-040-S
Column End
Column End Fitting
Downloadables

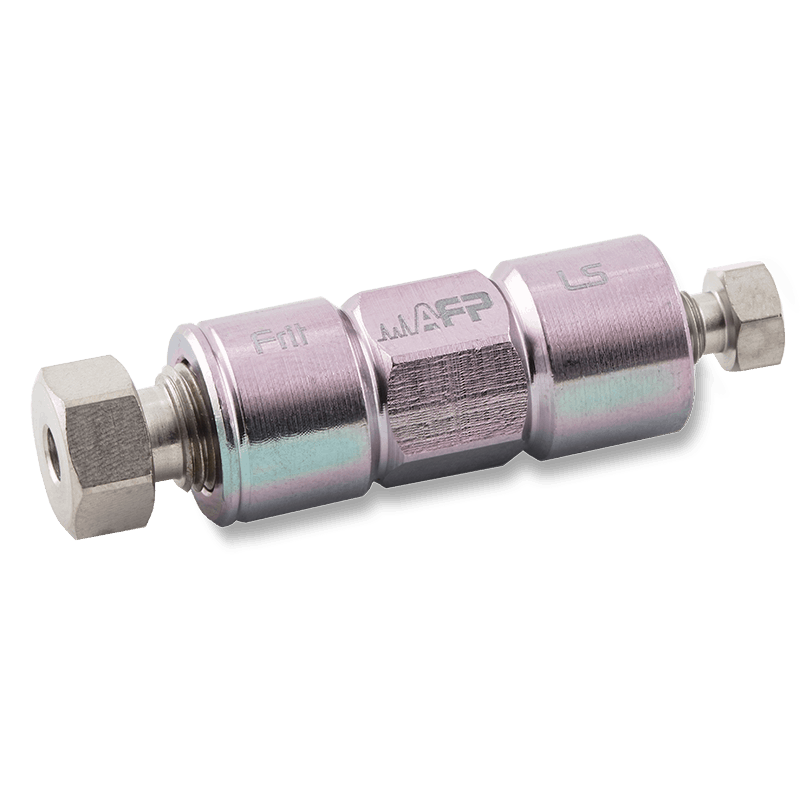

Column End Fitting with Lipseal Feature, SilcoNert 2000® Coated
CE-SK-08-LS16-040-S
The Column End Fitting with Lipseal Feature is created to be a high performing piece of any gas chromatography system that joins two sizes of tubing - 1/8” and 1/16”. AFP’s Lipseal feature creates a face seal at the union body and the tip of the tube (when using pre-cut tubing), resulting in a real zero dead-volume fitting. Engineered out of high quality SS-316L, the Column End Fitting reduces the torque required to make proper connections as well as ease the plumbing inside a gc analyzer. The use of this Column End Fitting removes the need for welding at the end of typical packed columns in gas chromatographs and is designed with built-in filtration to prevent any damage or clogging in the valves.
The addition of SilcoNert 2000® coating improves reliability, durability, and creates an inert flow path for increased analytical results.
Key Features:
- Material: SS-316L
- Inlet (Left): 1/8”
- Outlet (Right): 1/16”
- Bore: 0.040”
- Frit: 10µm
- Coating: SilcoNert 2000®
Benefits Include:
- 1/8” Column End Fitting is created with a fine pitch thread
- Works with both 1/8” and 1/16” tubing size
- Lipseal feature for a real zero dead-volume fitting
- Works with any AFP system and are in spec for the gas chromatography market
Dimensions & Weight
Length: 2.0 in [50.8 mm]
Width: 2.0 in [50.8 mm]
Height: 2.0 in [50.8 mm]
Weight: 0.0704 lb [0.07 lb]
